UL 498

09 Jan, 2024 398

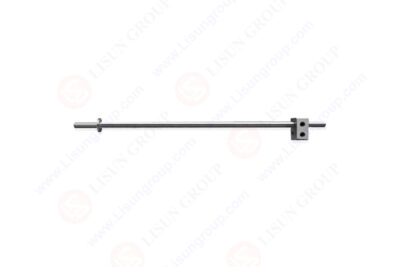

Test Pin B with UL 498 Figure 125.2

125 Grounding Contact Test 125.1 Grounding receptacles having a 5-15R,5-20R，6-13R，6-20R，7-15R，14-15Ror 15-15R configuration are to be subjected to the tests in this section. 125.2 Previously untested devices are to be used. Each device is to be mounted in a flush device box, or as otherwise intended, with its face in a vertical plane. A nonmetallic faceplate is to be installed if intended....

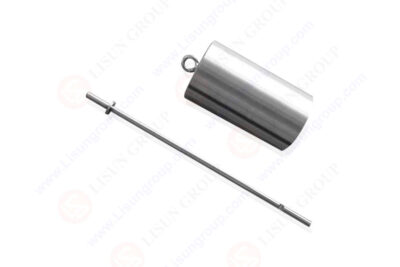

Test Plugs A of UL 498 Figure 119.1

119 Retention of Plugs Test (Repeated) 119.1 General Test Pin A of UL 498 Figure 119.1 119.1.1 After completion of the Overload Test, Section 117, and the Temperature Test, Section 118, the contacts of a 1-15R.5-15R.5-20R,6-15R or 6-20R configuration receptacle, other than the flush or self-contained type, shall retain an attachment plug so that when tested as described in this section: a) A force...
