Salt Spray Test | Salt Spray Test Chamber

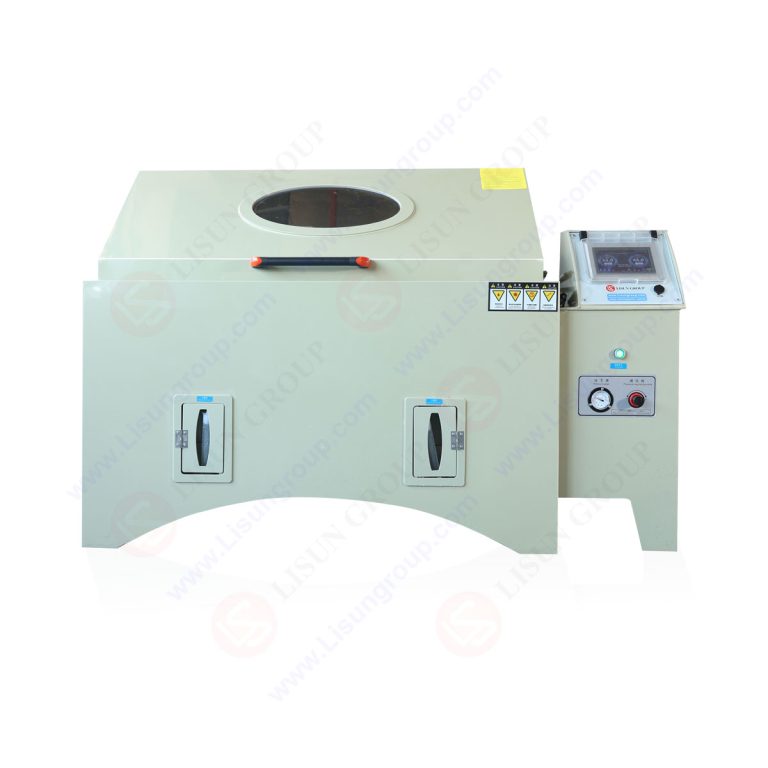

Salt Spray Test Chamber | Salt Fog Test | ASTM B117 Salt Spray ChamberSalt Spray Test Chamber is applicable to the salt spray corrosive test for the protection layer of components, parts, electronic and electrical parts and metal materials and industrial products. Salt spray test chamber is to assess the corrsion resistance of materials and coatings. This type of test is important for various industries to ensure the durability and reliability of products, especially those exposed to harsh environmental conditions, such as marine environmentals, automotives settings, or industrial applications.

Stanndard:
GB/T 2423.17 Environmental testing for electric and electronic products – Part 2: Test methods – Test Ka: Salt mist
IEC60068-2-11 “Environmental testing – Part 2-11: Tests – Test Ka: Salt mist”
GB/T10125 “Corrosion tests in artificial atmospheres — Salt spray tests”
GB/T1771 “Paints and varnishes – Determination of resistance to neutral salt spray(fog)”
ASTM-B117 “Standard Practice for Operating Salt Spray (Fog) Apparatus”
QBT3826 “Corrosion-resistant testing method of the metal deposits and conversion coatings for the light industrial products.Neutral salt spraying test (NSS)”
QBT3827 “Corrosion-resistant testing method of the metal deposits and conversion coatings for the light industrial products–Acetic salt spraying test (ASS)”
IEC 60068-2-52 “Environmental testing – Part 2-52: Tests – Test Kb: Salt mist, cyclic (sodium chloride solution)”
ASTM-B368 “Standard Test Method for Copper-Accelerated Acetic Acid-Salt Spray (Fog) Testing (CASS Test)”
MIL-STD-202 “DEPARTMENT OF DEFENSE TEST METHOD STANDARD ELECTRONIC AND ELECTRICAL COMPONENT PARTS “
EIA-364-26 “Salt Spray Testing of Electrical Connectors”
GJB150 “Environmental Test Methods for Military Equipments”
ISO3768 “Metallic coatings Neutral salt spray test (NSS test)”
ISO3769 “Metallic coatings Acetic acid salt spray test (ASS test)”
ISO3770 “Metallic coatings Copper-accelerated acetic acid salt spray test (CASS test)”
ISO9227 “Corrosion tests in artificial atmospheres Salt spray tests”
ISO 16750-4 “Road vehicles – Environmental conditions and testing for electrical and electronic equipment – Part 4: Climatic loads”
CNS 3627 “Basic Environmental Testing Procedures Part 2:Tests,Test Ka:Salt Mist”
CNS 3885 “Method of Test for Surface Treatment of Bicycle Parts”
CNS 4159 “Method of Copper-Accelerated Acetic Acid Salt Spray (Fog) Test for Surface Finishing (CASS Test)”
CNS 7669 “General Rules of Electroplating for Automobile Parts”

Specifications:

Product Features:

Products Features

What is salt spray corrosion?

Corrosion is the destruction or deterioration of materials or their properties caused by the environment. Most corrosion occurs in the atmospheric environment, which contains corrosive components and factors such as oxygen, humidity, temperature changes, and pollutants. Salt spray corrosion is a common and most destructive atmospheric corrosion. The salt spray mentioned here refers to the chloride atmosphere, and its main corrosive component is the chloride salt in the ocean – sodium chloride, which mainly comes from the ocean and inland saline-alkali areas. The corrosion of the surface of metal materials by salt spray is caused by the chloride ions contained in it penetrating the oxide layer and protective layer on the metal surface and electrochemically reacting with the internal metal. At the same time, chloride ions contain a certain amount of hydration energy and are easily squeezed out by the pores and cracks adsorbed on the metal surface and replace the oxygen in the oxide layer, turning insoluble oxides into soluble chlorides and turning the passive surface into an active surface, thus it causing extremely bad adverse reactions to the product.

How do you do a salt spray test?

1. First power on the salt spray test chamber (plug in)
2. Press the red power switch panel from left to right, respectively: the low water level A light is on, the low salt water B light is on, and the low water level C light is on.
3. Pour distilled water directly into the test chamber, wait until the water level A indicator light off, and stop adding water. […more…]

How Long does a Salt Spray Test Take?

The Salt Spray Test Chamber is an environmental test equipment that evaluates the corrosion resistance of products or metal materials by artificially simulating salt spray environmental conditions. The chloride concentration in the salt spray environment can be several or tens of times the salt spray content of the general natural environment, which greatly increases the corrosion rate. The salt spray testing of the product can greatly shorten the time to obtain the result. For example, if a product is tested in a natural exposure environment, it may take 1 year for its corrosion, while a test in salt spray test chamber may take as long as 24 hours to obtain similar results.

How to use a salt spray test chamber to determine the corrosion resistance of LED lamps?

Salt spray test is a kind of environmental reliability test, mainly used to test the corrosion resistance of metal materials of lamps. In order to verify whether the metal parts on the product will corrode when exposed to the atmosphere or other environments, the product can be placed in the use environment for a long enough time, such as a product life cycle. This is time-consuming and labor-intensive. In practice, it is rarely used, so a convenient method is needed to evaluate the corrosion resistance of the product.

LISUN YWX/Q-010 Salt Spray Test | Salt Spary Chamber – After-sales Frequently Asked Questions (FAQ)
LISUN YWX/Q-010 Salt Spray Test | Salt Spary Chamber were in the market for more than 10 years, LISUN engineers service team already summary the most of the After Sales Questions and Answers in the above link. Please read it carefuly, you can solve the most of the problems by yourself if you have some questions while using the instruments. LISUN will be continue to update this pages and more FAQ can be found in this topic link.

YWX/Q-010 Salt Spray Test Chamber - Introduction Video

YWX/Q-010 Salt Spray Test Chamber - Operation Video
