IP Waterproof Test Equipments

The JL-X includes the following test grades: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8 (Refer to page 51 of IEC60529). It is widely used in the authentication test organization for the products such as electrical & electronic products, LED luminaires as well as in the relevant quality control department for the waterproof detection of the enclosures protection grades.

Standard:
IEC60529:1989 +A1:1999 +A2：2013  “Degrees of protection provided by enclosures(IP Code)”
IEC60598 “Luminaires – Part 1: General requirements and tests”
IEC60335 “Household and similar electrical appliances – Safety – Part 1: General requirements”
IEC 60034-5 “Rotating electrical machines – Part 5: Degrees of protection provided by the integral design of rotating electrical machines (IP code) – Classification”
 GB7000.1 “Luminaires-Part 1：General requirements and tests”

The whole JL-X waterproof test system includes:
• Drip Box (JL-12): The drip box is for IPX1 and IPX2 drip test. The drip box size is 800x800x45mm (LxWxH). The diameter of drip hole is 0.4mm. The distance between drip holes is 20mm. The sample can be over 150kg.

JL-12 Drip Box

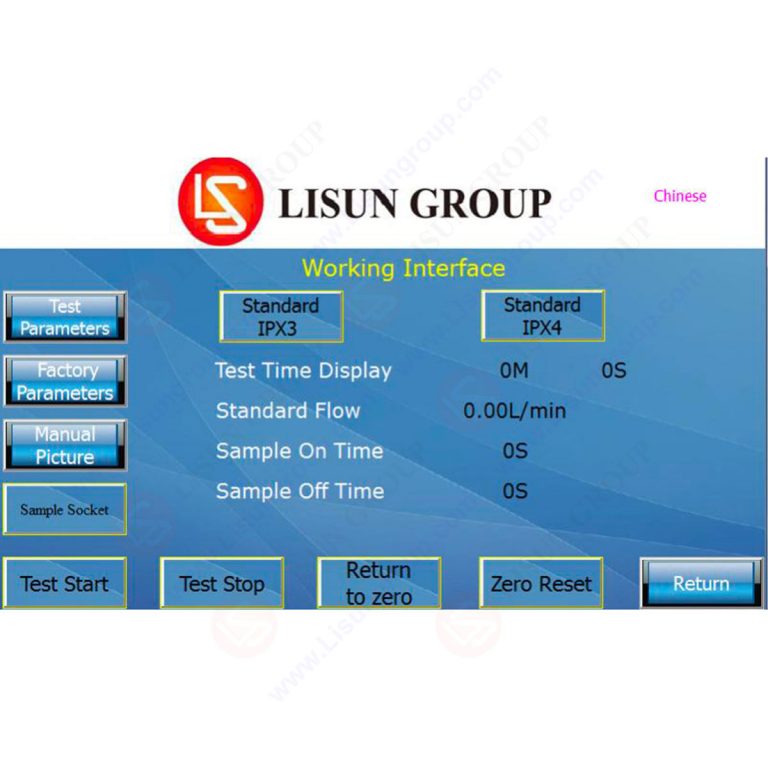

• Swing Pipe Water Spray Test Equipment (JL-34): It is for IPX3 and IPX4 waterproof test. The semi-diameter of swing pipe is 1meter (Any other size is also available). The internal diameter of the swing pipe is 15mm. The sample rotating table diameter is 1000mm (Or other size according to the diameter of the swing pipe), and the height is adjustable. The rotation speed is 1~5rpm which is controlled by PLC panel.

JL-34 Swing Pipe Water Spray Test Equipment

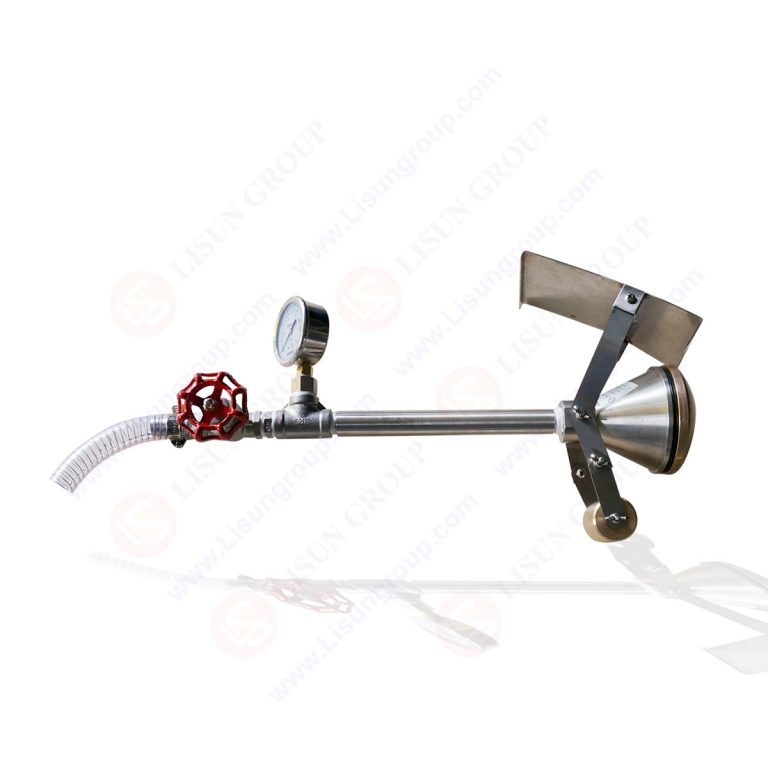

• Waterproof Jet Test Device (JL-56): With water supply device size is 780*580*1100mm, the nozzle diameter is ф6.3mm (IPX5 waterproof test ) and ф12.5mm (IPX6 waterproof test). The water flow is 12.5 ±0.625L/min for IPX5 and 100 ±5L/min for IPX6

JL-56 Waterproof Jet Test Device

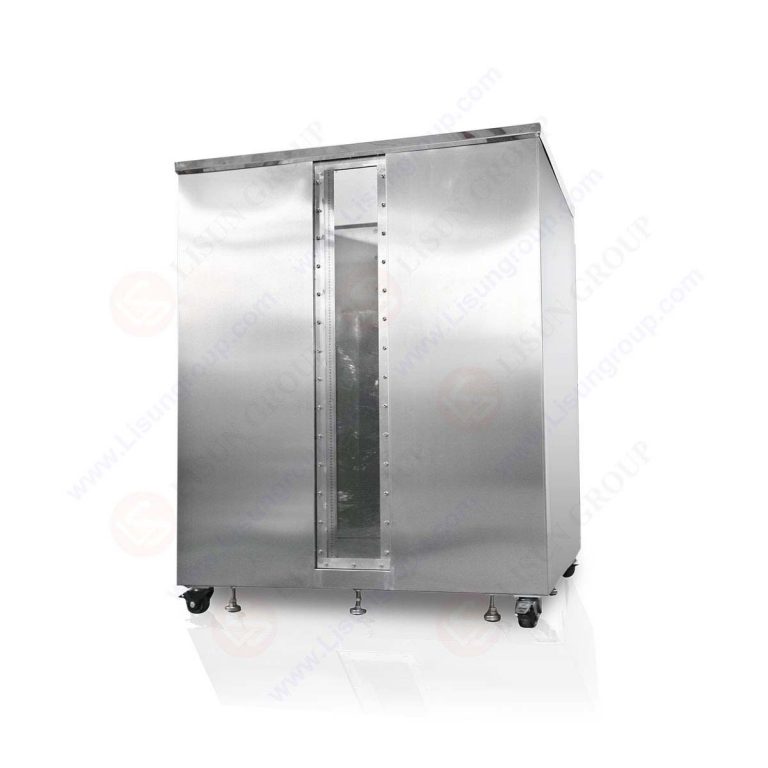

• Immersion tank Waterproof test Device (JL-7): It is for IPX7 waterproof test. The water tank size is 1000x1000x1200mm (Other size can be designed according to your request). It can test samples up to 120kg.

JL-7 Immersion tank Waterproof test Device

• Immersion tank Waterproof test Device (JL-8): It is for IPX8 test. It can simulate a water depth of 0~50m. The water immersion tank diameter is 600mm and the height is 1200mm. The compressive stress is 10 atmospheres or design according to customer‘s request.

JL-8 Immersion tank Waterproof test Device
