Product No: LS2050

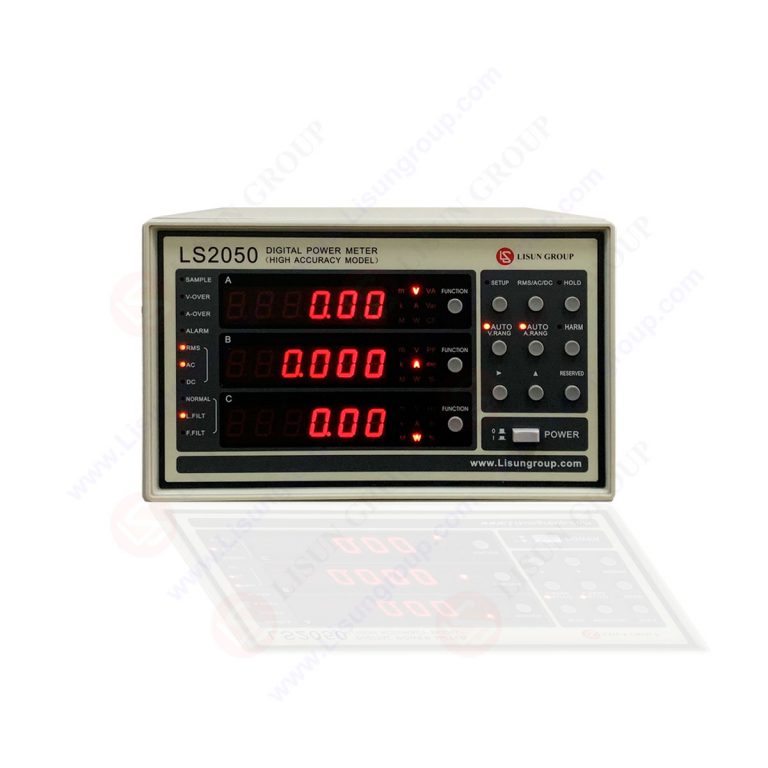

LS2050 High Accuracy AC and DC Power Meter is a new generation intelligent product which adopts digital sampling technology to analysis of the waveform.
• The LS2050C and LS2050C-IEC fully meet LM-79-19 requirements and the frequency Range: 0.5Hz-100kHz
• The software can measure U(AC&DC), I(AC&DC), P(AC&DC), Power Factor PF(AC), Displacement Factor DF(AC) and Total 0-50 Harmonic in IEC/CSA. Click here to see the LS2050B/LS2050C/LS2050C-IEC Test Report Sample
• The LS2050-IEC with additional software (need to add extra cost on LS2050) fully meets EN/IEC6100-3-2:2019, please click here to see the LS2050C-IEC additional Test Report Sample
Standards:
• EN/IEC6100-3-2:2019 “Electromagnetic compatibility (EMC) – Part 3-2: Limits – Limits for harmonic current emissions (equipment input current ≤16 A per phase) (Incorporates Amendment A1: 2021)”
• LM-79-19 Optical and Electrical Measurements of Solid State Lighting Products
| Specifications: | Voltage (v) | Current (A) | |
| Input circuit type | Floating replacement input | Floating replacement input | |
| Input resistance | > 1MΩ | < 0.01Ω | |
| Range | AC/DC: 600V/300V/150V/75V Automatic | AC/DC: 20A/8A/2A/0.5A | |
| Automatic | |||
| IS instantaneous Max | 1600V | 50A | |
| Permissible input | |||
| Continuous max permissible input | 800V | 24A | |

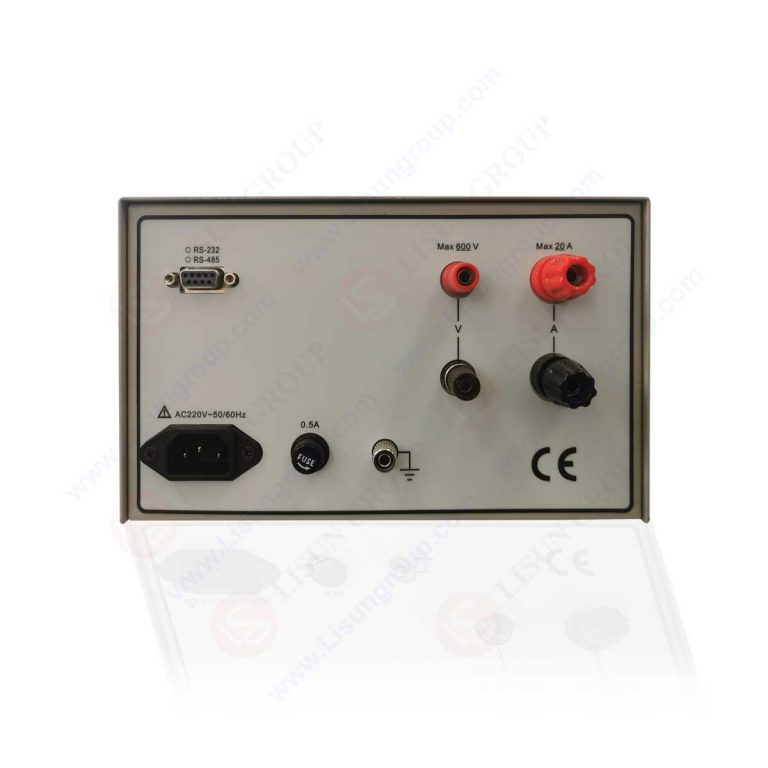

| Input terminal | Small terminals | Big terminals | |
| Automatic range switch | Increase range | Measured value over 110% rated range | |
| Decrease range | Measured value lower than 80% rated range | ||
Accuracy:
| LISUN Model | Voltage | Current | Power | PF/DF | Frequency |
| LS2050C | ±(0.1% read value +0.1%range +1 digit) | ±(0.002+0.001%read value+1 digit) | ±(0.1%read value+1 digit) | ||
| LS2050C-IEC | |||||
| LS2050B | ±(0.4% read value +0.1%range +1 digit) | ±(0.004+0.001%read value+1 digit) | ±(0.1%read value+1 digit) | ||
It was an essential product for manufacturing and research. I purchased it after confirming that it is a CIE/IEC certified product. The quality of the product is excellent and the satisfaction with the price is high. Employees are also satisfied with their response to repairs and after-sales services.
