Product No: HM-700
Haze Meter and Spectrophotometer HM-700 is designed for color, haze, spectral transmittance and total transmittance measurement of transparent and translucent materials such as plastic sheets, films, glass, LCD panel and touch screen, etc.
Product Introduction:
1. Comprehensive Transmission Color Parameters
Color and haze meter hascomprehensive color parameters, which can measure dozens of color parameters such as Lab, yellowness index, whiteness index, Gardner, Pt-Co / APHA / Hazen colors.
2. Comply with ASTM and ISO standards
The clarity and haze meter complies with both ASTM and ISO measurement standards. It can meet the following measurement standards ASTM D1003 / D1044, ISO13468 / ISO14782, JIS K7105, JIS K7361, JIS K7163 and other international standards.
3. Different Light Sources for Different Measurement Requirements
Color and haze meter provides A, C and D65 measurement light source selection, and 24 types of measurement light source for color measurement.
4. Compensation Measurement to Make Test Result More Accurate
It can realize the compensation measurement of transmittance and provide more accurate transmittance test results.
5. Haze QC software as Standard Accessory
Provide powerful haze, color, and transmittance measurement and analysissoftware, which can operate on a computer to generate and print test reports.
6. Seven-inch Android Touch Screen for Better Testing Experience
Android operate system and touch screen for more convenient operation and better user experience.

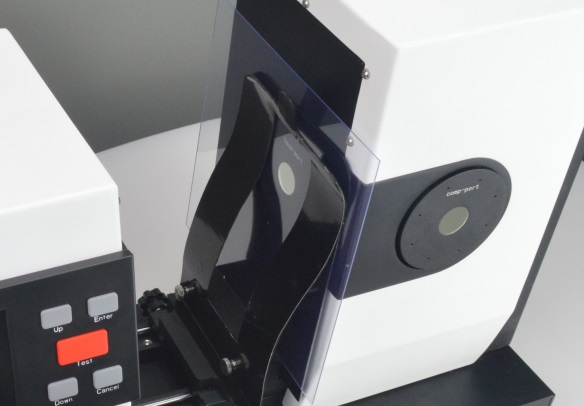

7. Open Sample Measurement Area, Sample can be Measured Horizontally or Vertically
Open samplemeasurement area, which is no limit on sample size, you can perform horizontal or vertical measurement according to different samples.

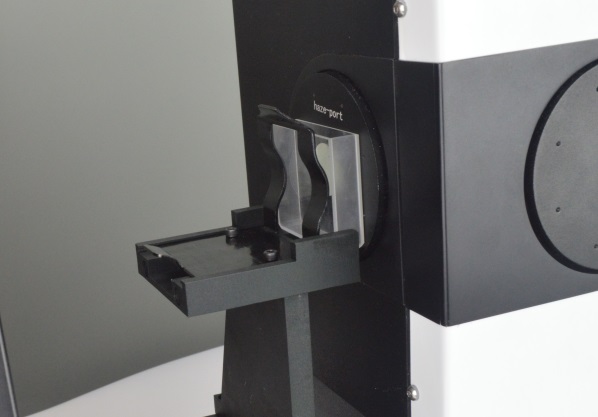

8. Abundant Measurement Fixtures
Meet the measurement needs of different forms of sheet and liquid samples
Specifications:
|
Model |
HM-700 |
|
Light source |
Haze / Transmittance: CIE-A、CIE-C、CIE-D65 |
|
Standards |
ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08,CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,JIS Z8722 Condition c standard |
|
Parameters |
Haze (HAZE),Transmittance (T),Spectral transmittance, CIE Lab,LCh,CIE Luv,XYZ,Yxy, , Hunter Lab MunsellMI,CMYK,Whiteness WI(ASTM E313-00,ASTM E313-73, CIE/ISO, Hunter, Taube Berger Stensby), Yellow Index YI(ASTM D1925, ASTM E313-00, ASTM E313-73), Tint(ASTM E313-00), Heterochromatic index Milm, APHA, Pt-Co(Index of platinum cobalt),Gardner, Color difference (ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00) |
|
Measuring Range |
0-100% (Haze, transmittance) |
|
Spectral Response |
CIE The spectrum functionY/V(λ) |
|
Wavelength Range |
400-700nm |
|
Wavelength Interval |
10nm |
|
Geometry |
0/d |
|
Illumination Area and Aperture |
16.5mm/21mm |
|
Resolution |
0.01 unit |
|
Repeatability |
haze＜10%, repeatability≤0.05; haze≥10%, repeatability≤0.1%; Transmittance≤0.1% |
|
Sample Size |
thickness≤145mm |
|
Display |
7 InchesTouch Screen |
|
Data Storage |
20,000 values |
|
Interface |
USB |
|
Power |
110V / 220V / 240V |
|
Working Temperature |
0~45℃, Relative humidity 80% or below (at 35 ° C), no condensation |
|
Storage Temperature |
-25 ℃ ~ 55℃, relative humidity 80% or below (at 35 ℃), no condensation |
|
Instrument Size |
598mm*247mm*366mm (length * width * height) |
|
Standard |
PC management software (Color QC) |
|
Optional |
Measuring Fixture, Haze Standards, Transmittance Standards, 5mm / 7mm / 10mm Apertures, 40 * 10 Glass Cell |

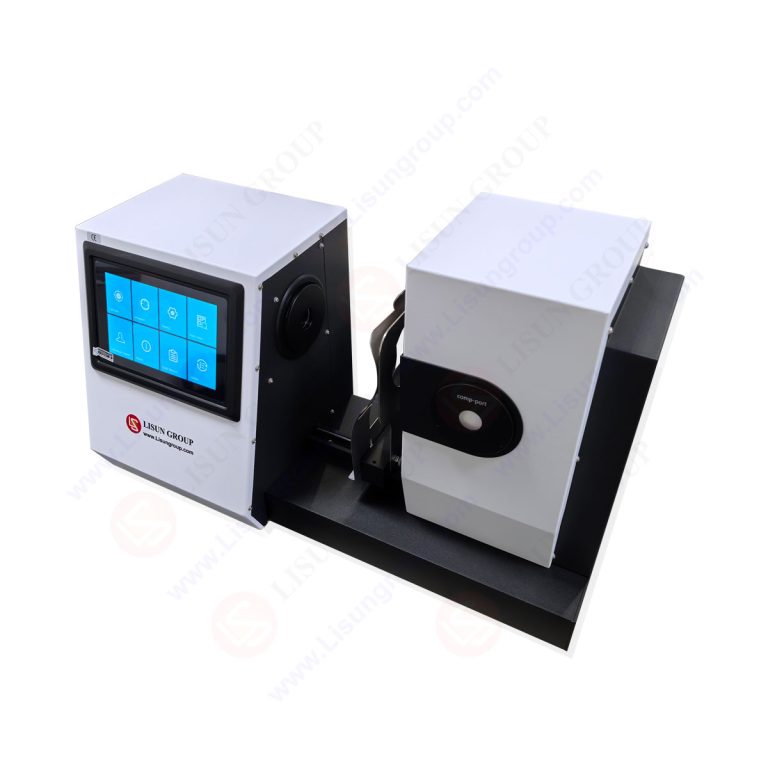

Instrument details
Applications:
Plastic sheet, film, glass, screen, etc.
