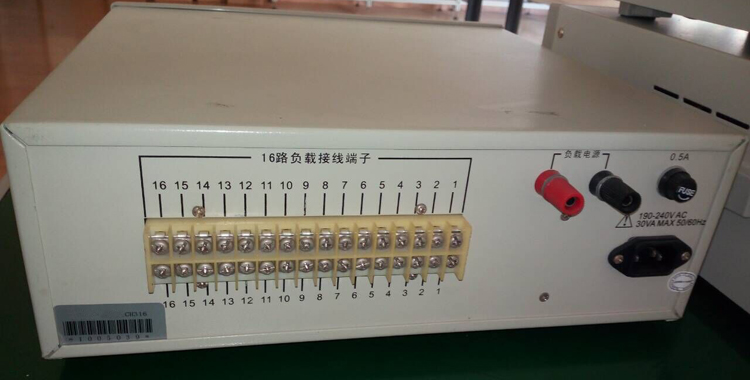

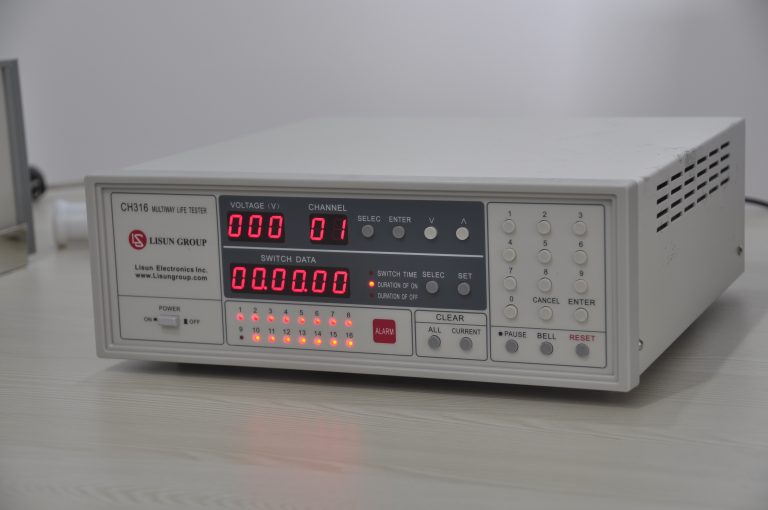

Multiway Life Tester

Multiway Lamp On-Off Switch Life Tester is designed according to IEC60432-1 Standard.

Standard:
IEC60432-1 “Incandescent lamps – Safety specifications. Part 1: Tungsten filament lamps for domestic and similar general lighting purposes”

Feature:
• Measure 16 samples at the same time, evaluate and record the life of each sample.
• Very flexible: Samples can be added and changed at anytime.
• The life of each sample is readable at anytime.
• The switch ON/OFF time is adjustable (Minumum period is 1s).
• Automatically record the test result when the power is off, and resume the original measurement when power is on.
• Sound and light alarm when the product is failed.

Specification:
• Current range under normal load: 30mA~1000mA (RMS). Not available if the load current is smaller than 30mA.
• Tested sample life range: 0~1,000,000 times.
• Switch on/off time: 1 second ~ 99 hours 59 minutes 59 seconds (adjustable).
