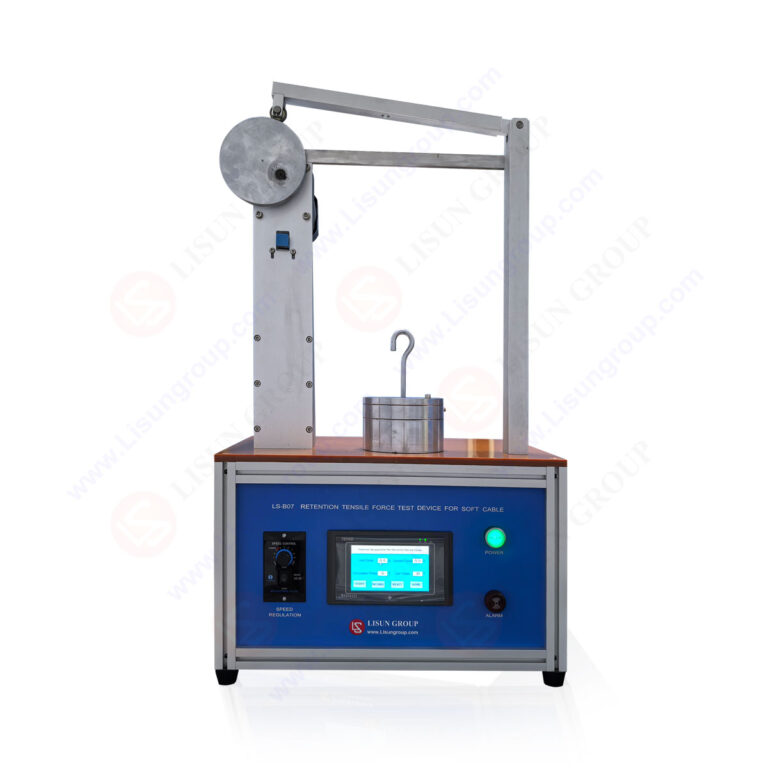

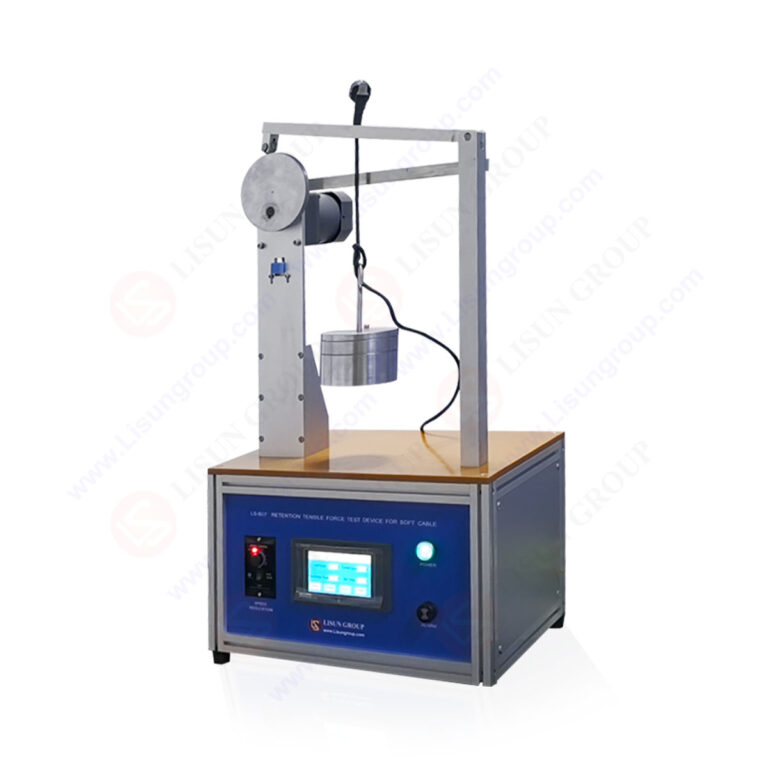

IEC 60884-1 Clause 23.2 Figure 27 Retention Tensile Force Test Device for Flexible Cables

Product No: LS-B07

Leave a Message

=
  • Description
  • Video

  • The LS-B07 Retention Tensile Force Test Device for Flexible Cables is specifically designed to inspect the fixation of plug or socket wires to electrical accessories. This device applies a corresponding force to the sample through a specific mechanical structure, observes the connection between the wire and accessory, and thus determines whether the fixation meets specified requirements. This provides effective inspection support for quality control of related products, ensuring the stability of the wire connection during product use.

    Standards:

    Standards Standards Name
    IEC 60884-1:2022  Plugs and socket-outlets for household and similar purposes – Part 1: General requirements
    EN 50075:1990  Plugs, socket-outlets and couplers for household and similar purposes – Safety requirements
    GB/T 2099.1-2021 家用和类似用途插头插座 第 1 部分：通用要求

    Specification：

    Display Touch Screen Color touch screen + PLC
    Drive Mode Gear motor
    Eccentric Wheel Effective diameter φ125
    Eccentricity of the Eccentric Wheel 32.5mm
    Sample Distance from Pivot 200mm
    Sample Distance from Impact Point of Eccentric Wheel 160mm
    Weights Combination of 50N, 60N, 80N, 100N weights
    Number of Tests Presettable from 0 to 9999
    Duration of Force Application Control Adjusted by speed controller, with screen displaying the duration of force application
    Test Completion Alarm Audio-visual alarm

    Typical Applications:
    1. Inspection of the secure fastening of household plug wires and electrical accessories
    2. Reliability testing of the connection between household socket wires and electrical accessories
    3. Inspection of the wire fastening in electrical accessories for similar purposes
    4. Quality inspection of plug and socket products that meet relevant standards

    IEC 60884 1 Figure 27
