Product No: LS2736

Leave a Message

=
  • Description

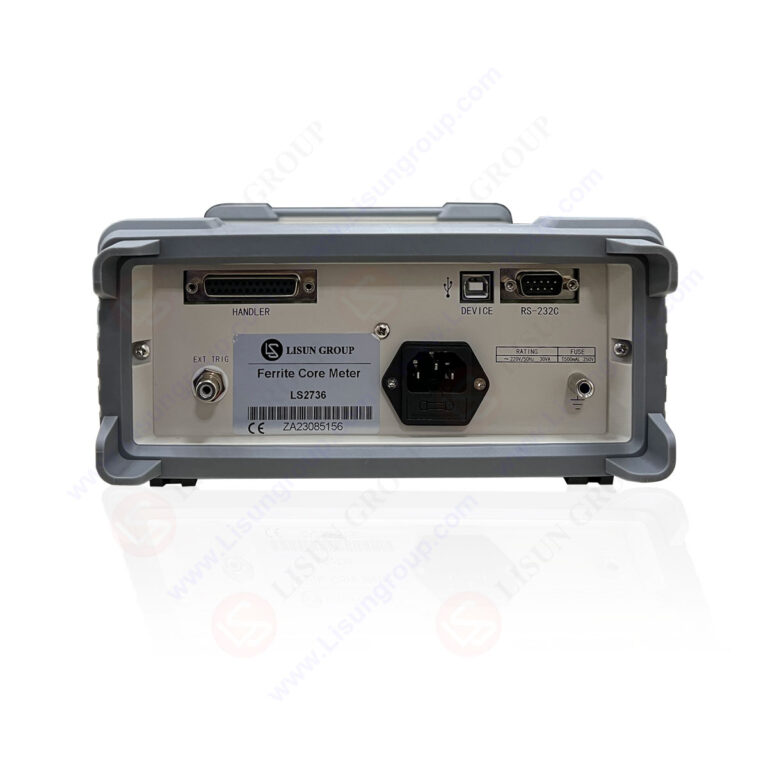

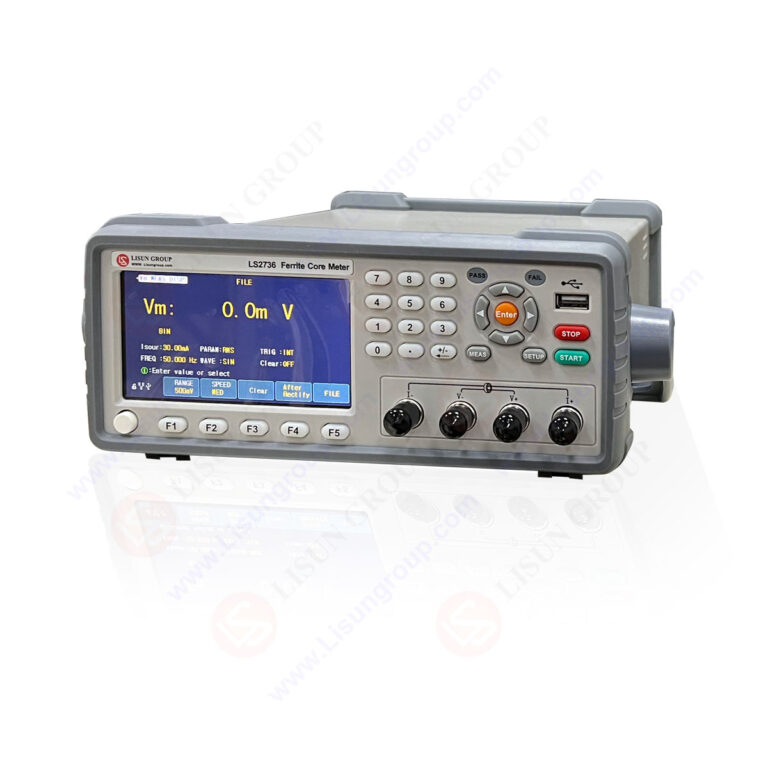

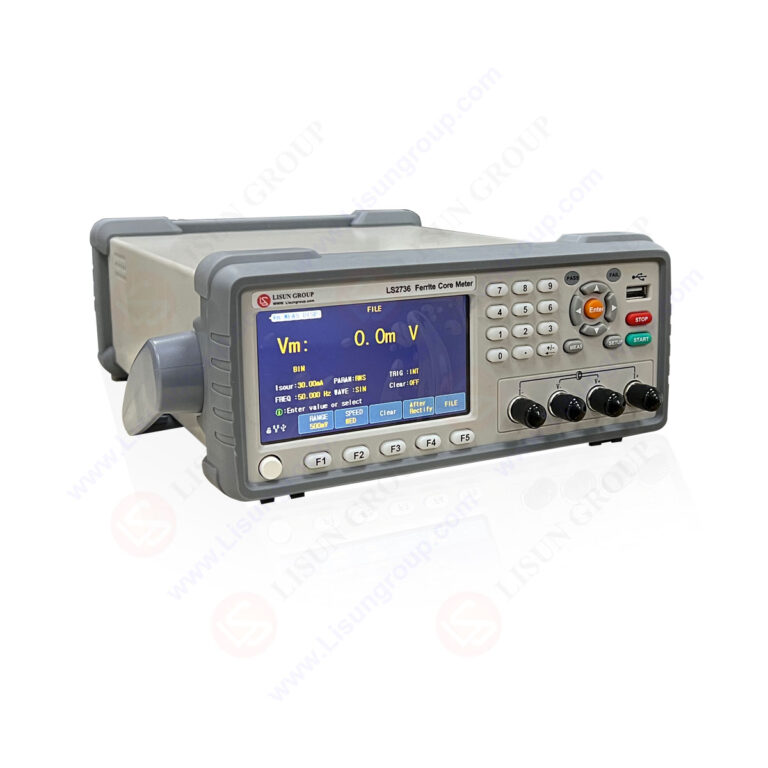

  • LS2736/LS2737 Magnetic Core Characteristic Tester (also known as Voltmeter-Ammeter Characteristic Tester) is an intelligent tester specially designed for ferrite core and iron core sorting equipment. It can also be used as a general-purpose AC constant current source or AC millivoltmeter, with a minimum resolution of 1μV.

    This instrument can simulate and measure the induced voltage generated by one turn of winding in an iron core or magnetic core under specific operating frequency and current. It features both true RMS mode and traditional average mode: the true RMS mode offers high measurement accuracy for distorted waveforms, while the average mode facilitates data comparison, realizing “one machine with two uses” and outstanding cost performance. In addition, the instrument boasts the advantages of fast measurement speed, high precision and good stability.

    Specifications：

    LISUN Model LS2736 LS2736-05 LS2737-10
    Test Frequency 50Hz,60Hz
    Measuring Function Sine Wave Sine Wave, Half Wave, Full Wave
    Measuring Range 1μV~500mV 1μV~800mV 10μV~1.0V
    Display Range 0.001mV~499.99mV 0.001mV~799.99mV 0.01mV~999.99mV
    Test Speed Fast: approximately 40 times/second; Medium: approximately 20 times/second; Slow: approximately 6 times/second
    Test Current 1mA~300mA，accuracy 1% 1mA~500mA，accuracy 1% 1mA~10A，accuracy 1%
    Voltage Accuracy 1%（±3μV） 1%（±10μV）
    Range Mode 500mV, 200mV, 20mV, 3mV 800mV, 200mV, 20mV, 3mV 1V, 200mV, 20mV, 3mV
    Scope of Use Can be used as an AC constant current source and an AC millivoltmeter
    Deviation Model Direct Reading, Absolute Deviation, Percentage Deviation, Coefficient
    Comparator BIN1～BIN14, HI (Over Upper Limit), LOW (Under Lower Limit), PASS, FAIL (LED Display), Buzzer Prompt
    Trigger Mode Internal, Manual, Automatic, External, Bus
    Port GPIB（Optional）、RS232C、UsbHost、Usb  Device、Handler
    Memorizer Internal 50 groups, external USB flash drive 500 groups of files
    Working Environment 0℃～40℃，Relative humidity≤75%
    Working Power Voltage：100~242VAC；Frequency：46～64Hz；Power：>85VA
    Volume(WxHxD) 216*87*300mm 310*110*315mm 400*130*450mm
    Weight 3.2Kg 4.5Kg 10Kg
