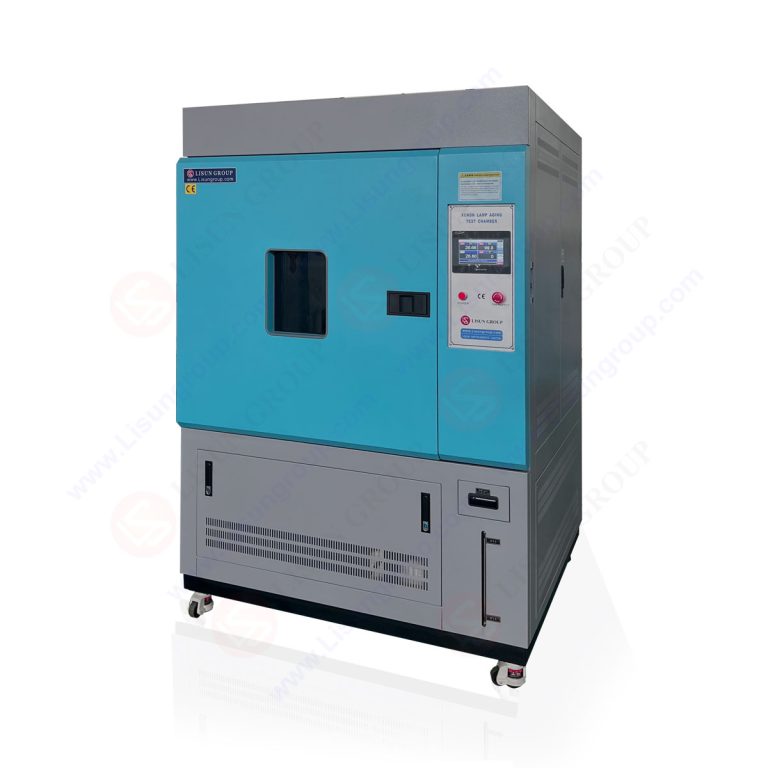

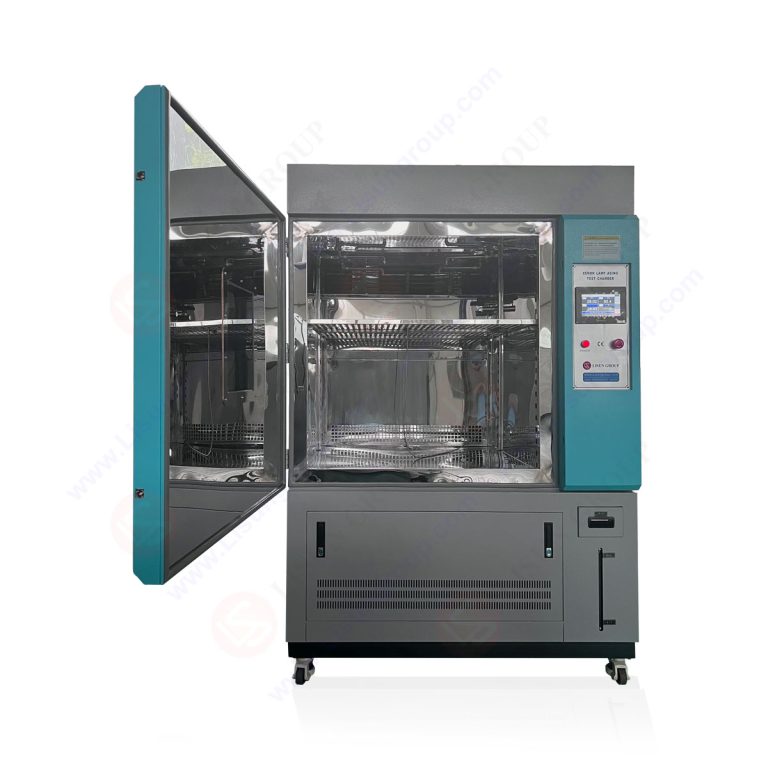

Xenon Lamp Aging Test Chamber

Product No: XD-80LS

Leave a Message

[wpforms id="9600"]
  • Description
  • Download
  • Xenon lamp aging test chamber adopts xenon arc lamp which can imitate the full spectrum of sunlight to reappear destructive spectral wave that exists in different environment. It can provide the corresponding simulation environment and accelerated test for scientific research, product development and quality control. Xenon lamp aging test chamber can be used for the choice of new materials, improving of existing materials, or the test of evaluating the durability of material composition when it is changed. It can imitate different environmental conditions to observe changes of the materials which were exposed in the sun.

    Standard:
    ISO 4892-1 “Plastics Methods of exposure to laboratory light sources Part 1: General guidance”
    ISO 4892-2 “Plastics Methods of exposure to laboratory light sources Part 2: Xenon-arc lamps”
    ISO 4892-3 “Plastics Methods of exposure to laboratory light sources Part 3: Fluorescent UV lamps”
    ASTM D3424 “Standard Test Methods for Evaluating the Relative Lightfastness and Weatherability of Printed Matter”
    ASTM D2565 “Standard Practice for Xenon-Arc Exposure of Plastics Intended for Outdoor Applications”
    GB/T16585-1996 “Rubber,vulcanized-Test method of resistance to artiricial weathering(fluorescent UV lamp)”
    GB14522-93 “Accelerated weathering test method for plastics,coatings and rubber materials used for machinery industrial products”
    GB/T16422.3-97 “Plastics-Methods of exposure to labory light sources- Part3:Fluorescent UV lamps”

    Technical parameters of climate test chamber for water-cooled Xenon lamp:
    • Model: XD-80LS Working size: 800*800*800mm
    • Temperature range: RT+10℃~80℃(Adjustable)
    Temperature deviation: ±2℃; Temperature fluctuation: ±0.5℃
    Humidity range: 65%-98%RH; Humidity fluctuation: ±3%
    Wind speed: ≤1.5m/s Sample rack speed: 5-12r/min(Adjustable)
    Rainfall time: 0~9999min(Adjustable)
    Xenon lamp source: Water-cooled lamp
    Quantity of Xenon lamps: 1 PCS
    Xenon Lamp Power: 6000W
    Distance between sample holder and lamp: 200~375 mm
    Illumination time: 1~9999h、m、s continuously adjustable
    Temperature control instrument adopts high precision digital microcomputer integrated controller; Accuracy: 1℃(Display range)
    Resolution: ±0.1℃
    Temperature sensor: PT100 platinum resistance thermometer
    Control Way: Heat balance temperature and humidity control way
    Temperature and humidity control adopts P.I.D+S.S.R system and channel coordinated control
    Equipment feature: with light, rain, temperature, humidity, wind, etc. climate
    Xenon lamp radiation intensity: 0.35w/m²; Wavelength: 200~800nm

    Technical parameters of climate test chamber for air-cooled xenon lamp:
    • Model: XD-150LF; Working size: 600*760*500mm(L*W*H)
    Temperature Range: RT+10~80℃(Adjustable); Blackboard temperature: 63℃ ±3℃
    Temperature fluctuation: ±0.5℃; Temperature deviation: ±2℃
    Humidity range: 50~95% R•H(Adjustable); Humidity deviation: ≤±2%
    Glass window filter: 1 PC
    Time of raining: 0~9999min; Cycle of raining: 1 ~ 240min, the interval can be adjusted
    Spray time: (Water spray time/no water spray time): 18min/102min or 12min/48min
    Rain water pressure: 0.12~15Mpa; Spray nozzle aperture: Ф0.8mm
    Xenon lamp source: Air-cooled lamp; Quantity of Xenon lamps: 3 PCS
    Xenon lamp power: 1.8KW/PC
    Heating Power: 3KW; Humidification power: 1.5KW
    Distance between sample holder and lamp: 230~280mm
    Sample rack tray: 1 layer turntable
    Wavelength: 200~800nm
    Illumination time: 1~9999h、m、s continuously adjustable
    Irradiance: 0.35w/m² (optional for Radiometer)
    Total Power: 9.5KW
