IEC 60884-1:2022 applies to plugs and fixed or portable socket-outlets for AC only, with or without earthing contact, with a rated voltage greater than 50 V but not exceeding 440 V and a rated current not exceeding 32 A, intended for household and similar purposes, either indoors or outdoors.
Compatible plugs and socket-outlets, when combined, form a plug and socket-outlet system. Standardized systems used around the world are reported in IEC/TR 60083. The rated current is limited to 16 A maximum for accessories provided with screwless-type terminals.
IEC 60884-1 Plugs and socket-outlets for household and similar purposes – Part 1: General requirements.pdf-download
LISUN supplies the fully test solutions for the following IEC 60884-1:2022, please see the below excel table:
| IEC 60884-1:2022 Clause and Subject | LISUN Model |

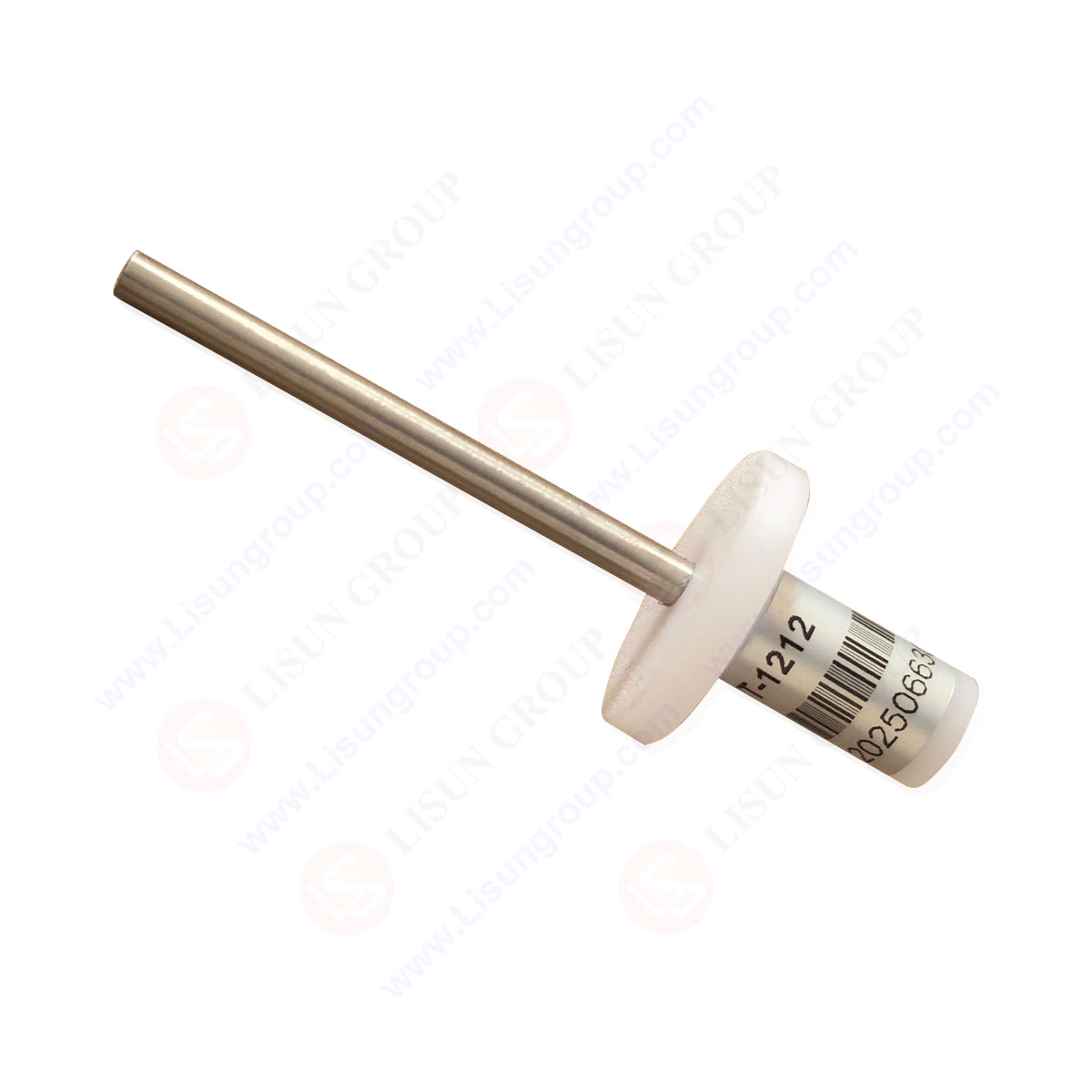

| Clause 10.1.1 test probe 12 | SMT-1212 |
| Clause10.2 Accessibility of live parts during normal use | SMT-02T10 & SMT-1175 |
| Clause 10.3.1 (Figure 2a – Apparatus for Mechanical strength test on resilient covers) | GNGPL-3602 |
| Clause10.5 Shuttered socket-outlets | SMT-CZ12 |
| Clause 11.5 Internal connection with the earthing terminal | LSP-5KVAS |
| Clause 12.3.11 Contact Pressure Drop Test Device | JCY-1 |
| Clause 12.3.12 Figure 14 IEC 60884.1 IEC 60669-1 Clause 12.3.12 Screwless Terminals Bending Test Device | JCY-2 |
| Clause 13.14 Lateral strain imposed by equipment(Figure 16) | BCL-1 |
| Clause 13.2 (Figure 4a)BS1363 of British Standard Plugs Socket Outlets Gauges | GNGPL-3604 |
| Clause 13.6.1 Apparatus for testing plug cover fixing screws(Figure 6) | GNGPL-3606 |
| Clause 13.6.1 Test pin (Figure 1) | SMT-BS01 |
| Clause 13.9.4.1 Apparatus for tests on plug pins (Figure 32a) | GNGPL-3632 |
| Clause 13.9.6.1 Apparatus for torsion test on pins (Figure 33) | GNGPL-3633 |
| Clause 13.11.1 Mounting plate (Figure 7) | GNGPL-3607 |
| Clause 13.12 Plug pin deflection test apparatus for resilient plugs (Figure 8) | GNGPL-3608 |
| Clause 13.17.3 Apparatus for abrasion test on insulating sleeves of plug pins (Figure 9) | LS-B10 |
| Clause 13.17.4 Apparatus for pressure test at high temperature (Figure 10) | GNGPL-3610 |
| Clause 14.2 Mechanical strength of pins of portable accessories(Figure 17) | LS-B04 |
| Clause 14.22.2 Plug Torque Tester | LSPTT-1 |
| Claue 15 Resistance to ageing and to humidity | GDJS-010A |
| Clause 16.1.2 Insulation resistance | WB2681A |
| Clause 16.2 Protection provided by enclosures(Figure 18) | LS-B05 |
| Clasue 17 Temperatur rise (Figure 17a/17b) | GNGPL-3617 |
| Clause 17.3 Electric strength test | WB2673C |
| Clause 19 Temperature rise | WS-1 |
| Clause 20 Breaking capacity(Figure 22) | CZKS-3 & DFX-20 |
| Clasue 20.1.2 Solid link for test on fuse clips (Figure 19) | GNGPL-3619 |
| Clause 22 （Figure 18 &19）IEC 60884-1 Clause 13.14 Figure 16 Device for Checking the Resistance to Lateral Strain | IEC 60884-1 Clause 20 Figure 18 and 19 Maximum and Minimum Pull-out Force | BCL-1 |
| Clause 23.1.2 Heating cabinet | GW-225 |
| Clasue 23.1.3 Apparatus for pressure test (Figure 23) | GNGPL-3623 |
| Clause 23.2 Cord anchorage(Figure 27) | LS-B07 |
| Clause 23.4 Protection of cable entrance in the accessories(Figure 28) | SW-6 & DFX-20 |
| Clause 24.2 Impact test with pendulum hammer | IK01-06P |
| Clause 24.3 Tumble barrel test | LS-DDT1-B |
| Clause 24.5Impact test at low temperature(Figure 30) | DWC-2 |
| Clause 24.6 Compression test(Figure 6) | LS-B08 |
| Clause 24.7 Torque test for cable glands | LWMF-1 |
| Claues 24.8Abrasion test on insulating sleeves of plug pins(Figure 31) | LS-B10 |
| Clause 24.10 Test for multiple portable socket-outlets(Figure 32) | LS-B11 |
| Clause 24.11 Retention test for pins(Figure 33) | LS-B12 |
| Clause 24.12 Mechanical test for means for suspension of portable socket-outlets | SMT-2126 |
| Clause 24.13-15 Tests on covers, cover-plates or parts of them(Figure 34) | LS-B14 |
| Clause 24.16 Verification of the outline of covers fixed without screws on a mounting surface or supporting surface(Figure 35) | GNGPL-23507 |
| Clause 24.17 Verification of grooves, holes and reverse tapers(Figure 38) | SMT-1203 |
| Clause 25.3 Ball-pressure test at 125°℃(Figure 40) | ZBP-T/GW-225 |
| Clause 25.5 Compression test(Figure 41) | LS-TCT-1 |
| Clause 27 Creepage distances, clearances and distances through sealing compound(Table 26) | CK-1 |
| Clause 28.1.2 Glow-wire test | ZRS-3H |
| Clause 28.1.3 Test for pins with insulating sleeves(Figure 43) | LS-B17 |
| Clause 28.2 Resistance to tracking | TTC-1 |
| Clause 29 Resistance to rusting | YWX/Q-010 |
