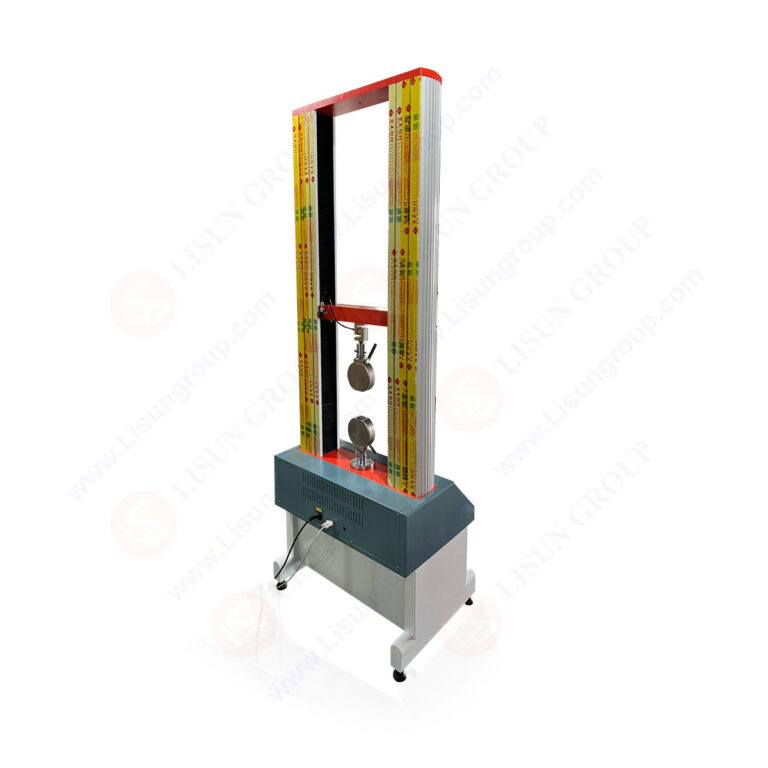

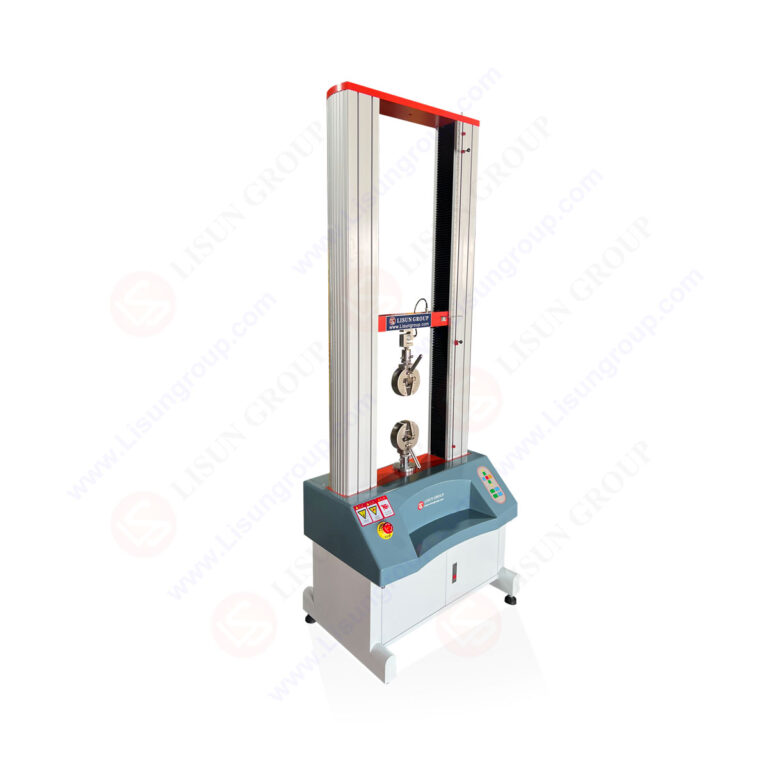

Double Columns Tensile Testing Machine

Product No: PULL-2000KG

Leave a Message

[wpforms id="9600"]

Description
Video

Double Columns Tensile Testing Machine is computer-controlled and widely used for mechanical performance testing of non-metal materials such as rubber, plastic, wire and cable, textiles, waterproof materials, nonwoven fabrics, as well as metal wires, metal foils, metal sheets and metal bars. It can also be used for various finished product testing, including tensile, compression, peeling, shearing, tearing, and bending (folding) tests, with the help of special fixtures.

It can also automatically calculate parameters such as tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation, and modulus of elasticity according to standards such as GB, JIS, ASTM, DIN, etc.

Standards:

DIN EN ISO 7500-1:2018 Metallic materials – Verification of static uniaxial testing machines – Part 1: Tensile testing machines
DIN EN ISO 527-1: 2019 Plastics – Determination of tensile properties – Part 1: General principles
ASTM D3811:2011 Standard Test Method for Unwind Force of Pressure-Sensitive Tapes
ISO 1924-2:2008 Paper and board -Determination of tensile properties-Part 2: Constant rate of elongation method
ISO 5893:2019 Rubber and plastics test equipment — Tensile, flexural and compression types (constant rate of traverse)-Specification

Specifications:
• Force units: N, KN, Kgf, and Lbf can be freely converted.
• Length units: mm, cm, and inch can be freely converted.
• Control modes: Various control modes such as software-set speed, running time, load rupture (fracture), etc. are available.
• Automatic detection of material rupture, compression crush, etc. and automatic shutdown. Automatic return can be set.
• Types of curves: Load-displacement, load-time, displacement-time. Stress-strain, strain-time, stress-time. The coordinates of the curves can be set arbitrarily.
• Standard fixture can measure parameters such as maximum force, minimum force, rupture value, and tensile strength.
• Customized fixtures/extensometers can measure parameters such as compression strength, upper and lower yield strength, elastic modulus, elongation, maximum, minimum, and average.
• Equipped with multiple protections such as overload, overcurrent, overvoltage, undervoltage, overspeed, and stroke.

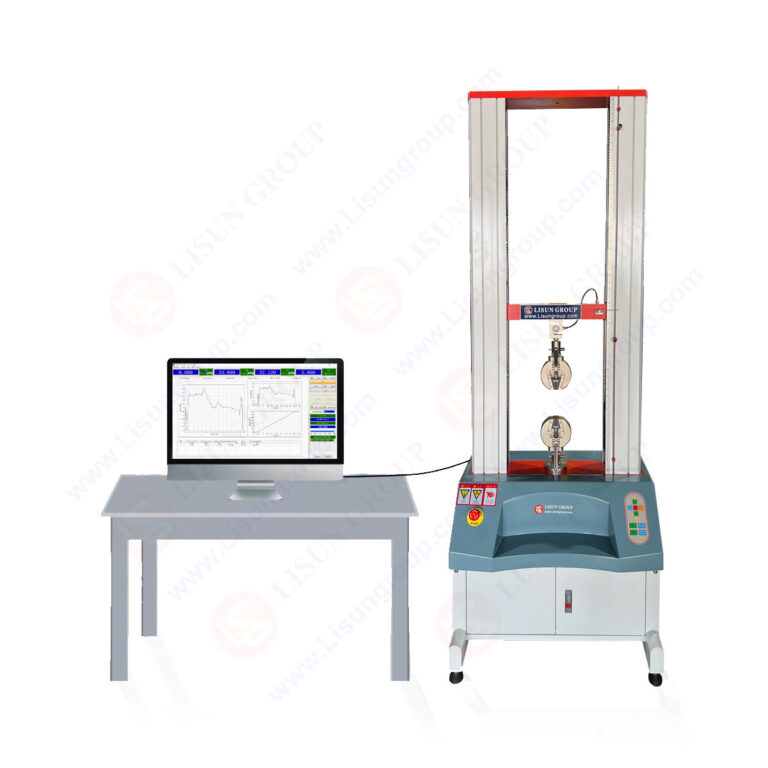

• It already includes one set of PC which already installed the control software, the software has Chinese, English, Russian and Spanish version.

LISUN Model	PULL-30T	PULL-20T	PULL-10T	PULL-5000KG	PULL-2000KG	PULL-500KG
Max Capacity	30T	20T	10T	5T	2000KG	500KG
Experimental Accuracy	Grade 0.5, the accuracy of the indicated value of the testing force is better than ±0.5%.
Load Induction	High-precision load compression and tension transducers
High Resolution	1/300,000
Magnification Factor	24-bit AD linear amplification with no segments
Test Speed Range	0.001~500 mm/min Infinite speed control
Speed Accuracy	±0.5%
Displacement Decomposition	0.001mm
Effective width of experiment	Standard Type: 400 mm (Option: Design according to customer’s request)
Test Trip (with fixtures)	Standard Type: 800 mm (Option: Design according to customer’s request)
Overload Setting Protection Function	When the applied force exceeds 10% of the set testing force, the system automatically shuts down to protect itself.
Trip Setting Protection Function	Trip setting protection for upper and lower limits of the journey.
Servo Motor	Taiwan Delta servo motor, servo drive controller
Power Supply	Single phase AC220V/50Hz (Design according to customer’s request)
Fixtures and Tools	A set of clamping fixtures and a set of tools (Others are option in belowing picture)
