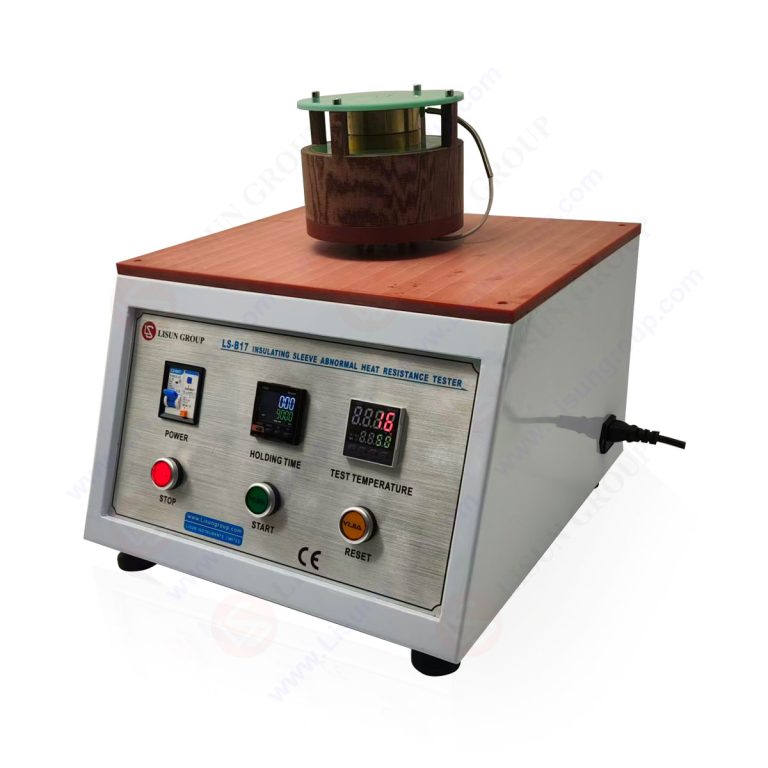

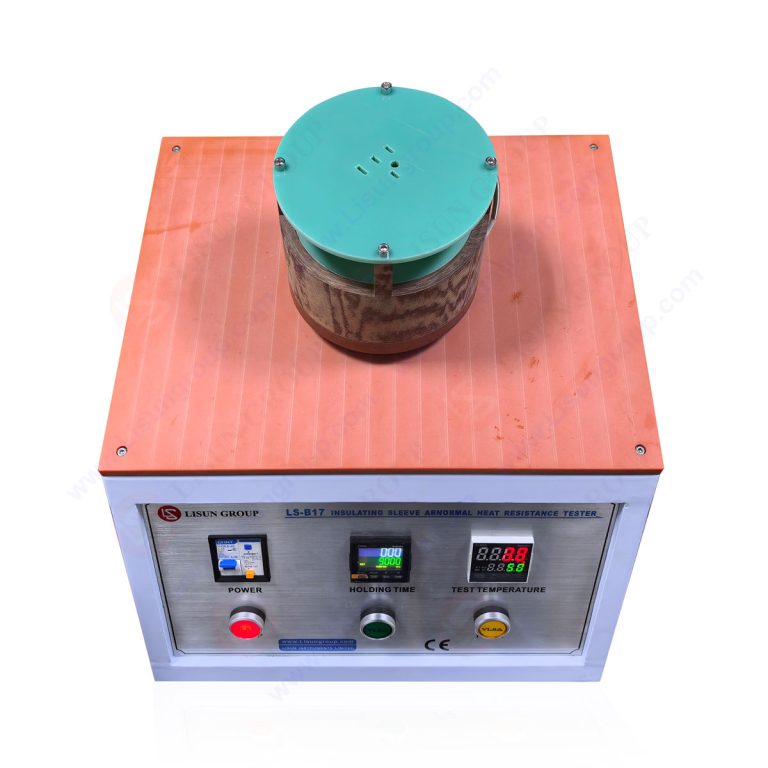

IEC 60884-1 Clause 28.1.3 Figure 43 Insulating Sleeves of Plug Pins Abnormal Heat Resistance Test Device

LS-B17 Insulating Sleeves of Plug Pins Abnormal Heat Resistance Test Device is completely full meet IEC 60884-1 Clause 28.1.3 Figure 43 (GB/T 2099.1 Clause 28.1.3 and Figure 40) Design and manufacture. It is suitable for normal heat and combustion resistance tests for plugs with Insulating Sleeves. Test principle: Use the heating disc to heat the copper socket, and the simulation plug plug -in insulation set is suffering from normal thermal heat, thereby testing its heat resistance.

Specification:
• Insulation plate: a flat surface with a thickness of 5mm, twice the diameter of the contact surface of the test product, and the production of electric wood or epoxy plate.
• Metal parts B (fixture): The length is greater than 20mm, and the material is brass. There are 3 standard GB6A plugs, GB10A three plugs, and GB16A three plugs.
• Insulation plate and metal parts B gap: 3 ± 0.2mm to ensure the air flow around the foot
• Thermocouple distance from metal part B front: 7±0.5mm
• Inserting holes on metal part B: greater than the largest section size of the plug -in 0.1mm
With the K -type thermal electric heating, the import high precision Digital temperature meter

IEC 60884-1 Clause 28.1.3 Figure 43
