Fast Photo-Electric Tester

The Fast Photo-Electric Brightness Test Meter consists of three main parts: electrical parameter measurement circuit, photometric parameter measurement circuit and CPU system circuit. The voltage and current signals are amplified and sent to the high-speed A/D converter, and then the converted digital signal is sent to the microprocessor, the input current signal of the brightness detector is sent to the A/D converter through I/V conversion, and then the digital conversion signal is sent to the microprocessor. The microprocessor processes the input photometric parameter and electrical parameter data, which can automatically switch between different ranges and calculate and display the data at the same time.

Feature:
• Four windows display electrical parameters and photometric parameters, reducing the possibility of incorrect reading

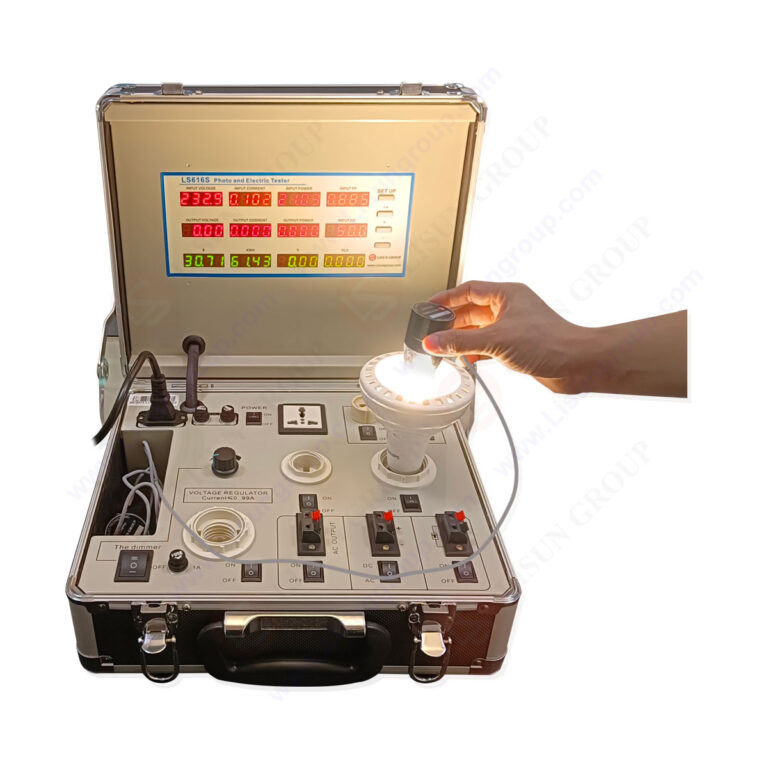

• The tester comes with built-in lamp holders, and the lamp can be directly installed for testing
• The measured electrical parameters are true RMS values
• Photodetector V(λ) correction accuracy is high, meeting national CLASS 1 brightness meter requirements
• The measurement range can be automatically switched according to the test results
• Built-in dual watchdog, high reliability, no crash in complex environment

Specification:
• Electric parameter:
1. Measuring range: Voltage: 0-300V; Current: 0-0.5A/5A (Automatic range switching)
2. Input resistance: Voltage: greater than 1MΩ; Current: less than 0.01Ω
3. Frequency range: Base frequency 45Hz, band 5KHz
4. Accuracy specification: Voltage, Current, Power: ±(0.4% read value+1digit)
5. Power factor: ±(0.004+0.001/read value+1digit)
• Photometric parameter:
1. Measuring range of brightness: 0.001kcd/m2-999.9kcd/m2
2. Accuracy grade: CLASS 1
3. Range: Four-level ten-fold range automatic switching

LISUN LS616S Fast Photo-Electric Tester – After-sales Frequently Asked Questions (FAQ).
LISUN LS616S Fast Photo-Electric Tester were in the market for more than 10 years, LISUN engineers service team already summary the most of the After Sales Questions and Answers in the above link. Please read it carefuly, you can solve the most of the problems by yourself if you have some questions while using the instruments. LISUN will be continue to update this pages and more FAQ can be found in this topic link.
