The Fast Photo-Electric Brightness Test Meter consists of three main parts: electrical parameter measurement circuit, photometric parameter measurement circuit and CPU system circuit. The voltage and current signals are amplified and sent to the high-speed A/D converter, and then the converted digital signal is sent to the microprocessor, the input current signal of the brightness detector is sent to the A/D converter through I/V conversion, and then the digital conversion signal is sent to the microprocessor. The microprocessor processes the input photometric parameter and electrical parameter data, which can automatically switch between different ranges and calculate and display the data at the same time.
• Four windows display electrical parameters and photometric parameters, reducing the possibility of incorrect reading
• The tester comes with built-in lamp holders, and the lamp can be directly installed for testing
• The measured electrical parameters are true RMS values
• Photodetector V(λ) correction accuracy is high, meeting national CLASS 1 brightness meter requirements
• The measurement range can be automatically switched according to the test results
• Built-in dual watchdog, high reliability, no crash in complex environment
Specification:
• Electric parameter:
1. Measuring range: Voltage: 0-300V; Current: 0-0.5A/5A (Automatic range switching)
2. Input resistance: Voltage: greater than 1MΩ; Current: less than 0.01Ω
3. Frequency range: Base frequency 45Hz, band 5KHz
4. Accuracy specification: Voltage, Current, Power: ±(0.4% read value+1digit)
5. Power factor: ±(0.004+0.001/read value+1digit)
• Photometric parameter:
1. Measuring range of brightness: 0.001kcd/m2-999.9kcd/m2
2. Accuracy grade: CLASS 1
3. Range: Four-level ten-fold range automatic switching
Q1：The sample lamp can’t be turned on?
A1：The equipment power cord supplies power to both the equipment and the sample.

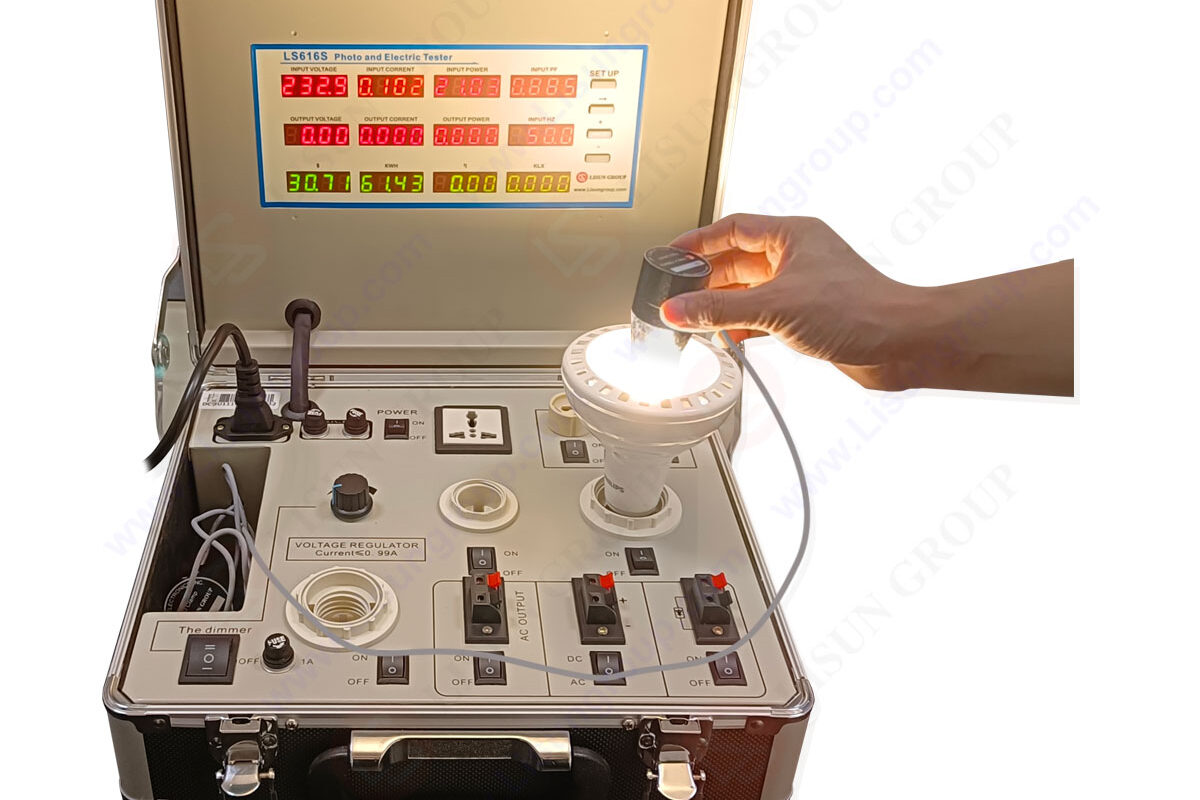

①The three-gear switch is used to control the sample power supply. The upper gear is the voltage regulator. If you switch to the upper gear, you can use the voltage regulator at ② to adjust the sample input voltage. The mid-gear is off. Adjust to the mid-range to turn off the sample input power. The lower-gear is for direct power supply. If it is adjusted to the lower gear, the voltage at the input power supply of the device is directly used to supply power to the sample. ③In addition, each sample installation location has a separate switch to control the power supply of the sample.
LS616S turning on the sample lamp
