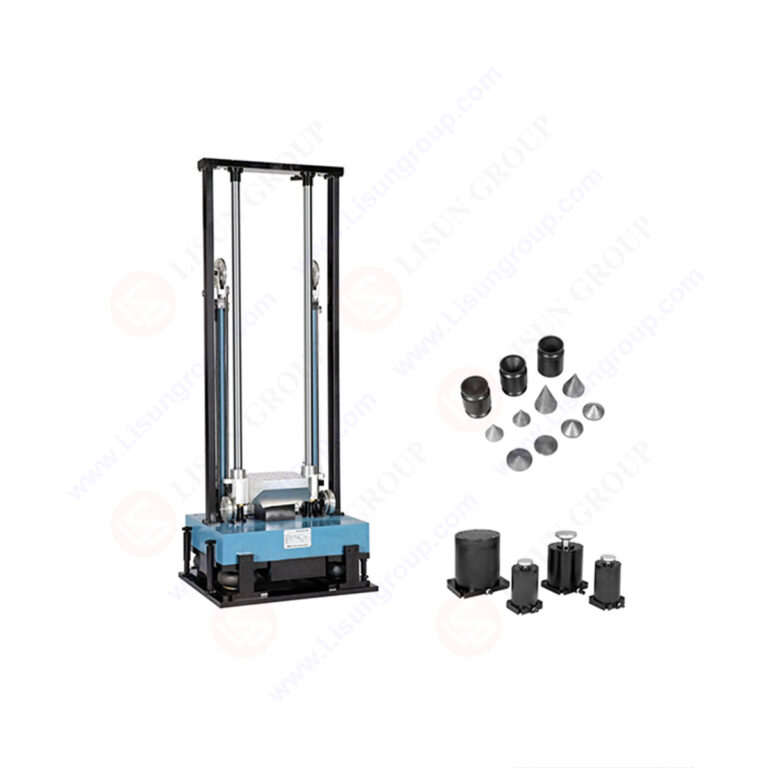

Hydraulic Vertical Shock Test Bench
Hydraulic Vertical Shock Test Bench

Hydraulic Vertical Shock Test Bench

Product No: LS-VS50

Leave a Message

=
  • Description

  • LS-VS50 hydraulic vertical shock test bench is a fully automatic hydraulic lifting shock test system with a free-fall structure. It is used to measure and determine the impact resistance of products or packages, and to assess the functional reliability and structural integrity of products under impact conditions. It can complete conventional impact tests of half-sine waves, post-peak sawtooth waves, trapezoidal waves (square waves), and other waveforms. It can accurately and realistically simulate the shock waves and impact energy that products suffer in actual environments, thereby improving the system or optimizing the packaging structure of products.

    Main features:
    • Multi-track guide pillars, smooth lifting, no noise
    • Integral casting table design, high rigidity, low high-frequency noise
    • Hydraulic brake mechanism, high safety, effectively prevent secondary impact
    • Digital control system to ensure impact stability
    • Add a seismic isolation system at the bottom to effectively reduce the equipment’s requirements for the site

    Specifications:

    LISUN Model LS-VS50 LS-VS100 LS-VS200 LS-VS400 LS-VS600 LS-VS1000
    Rated Load (kg) 50 100 200 400 600 1000
    Table Size (mm) 500*400 600*600 800*600 1000*800 1000*800 1200*1000
    Half Sine Wave Peak Acceleration(m/s²) 150~6000 150~6000 150~3000 150~3000 150~2000 150~2000
    Trapezoidal Peak Acceleration (m/s²) 150~2000 150~2000 100~1000 100~500 100~500 100~500
    Post-peak Sawtooth peak acceleration (m/s²) 150~1000 150~1000 150~1000 150~500 150~500 150~500
    Pulse Duration(ms) 30~1/30~2、18~3、18~6 30~3、18~3/18~6、18~6 30~3/30~6、18~6、18~6
    Dimensions (mm) 1200*1000*2500 1200*1000*2500 1220*1120*2600 1480*1200*2600 1620*1350*2600 1750*1500*2800
    Weight (kg) 2,550 2,550 3,800 4,200 5,100 6,700
    Power Supply Three Phases 380V, 50/60Hz
    Standards IEC 60068-2-27, GB/T 2423.5, MIL-STD-810F, GJB 150, GJB 360, GJB 548, GJB 1217, JIG 497
