Lightning and surges are common problems in power systems, especially in high-voltage power equipment. To protect equipment from the impact of lightning and surges, we need to use lightning surge generators. 5kv Surge Generators and 30kv surge generators are two commonly used devices. This article will focus on the performance differences between these two devices and analyze their applicable scenarios.
The 5kv surge generator is a device used to simulate lightning and surge environments. It typically consists of a high-voltage generator, capacitors, and a lightning production generator. This generator is suitable for devices that require simulation of lightning and surge scenarios in low-voltage environments, such as low-voltage power equipment and electronic devices.
The main feature of the 5kv Surge Generator is its lower output voltage. This means that it is suitable for devices that are more sensitive to high-voltage environments. Due to its lower output voltage, the cost of the 5kv surge generator is relatively low, and it also has a smaller size. It can simulate a certain degree of lightning and surge environment to test the withstand voltage and surgecapability of equipment. However, due to its lower output voltage, the simulation capability of the 5kv Surge Generator is relatively weaker and cannot meet the demanding requirements of high-voltage environments.
The 30kv surge generator is a device used to simulate lightning and surge scenarios in high-voltage environments. It typically consists of a high-voltage generator, capacitors, and a stabilizing power supply. Due to its higher output voltage, the 30kv surge generator can simulate higher intensity lightning and surge conditions, meeting the testing requirements of equipment in high-voltage environments.
The 30kv surge generator has more powerful simulation capabilities and a wider testing range. It can simulate higher voltage environments and conduct more realistic lightning and surge tests. It is more suitable for devices with higher voltage environment requirements, such as high-voltage power equipment and transformers. Additionally, the 30kv surge generator usually has a higher output power, able to withstand larger impacts and pressure from equipment.
1. Output Voltage: The 5kv surge generator has a lower output voltage, suitable for devices that aremore sensitive to high-voltage environments. In contrast, the 30kv surge generator has a higher output voltage and can simulate higher voltage environments.
2. Testing Capability: The 30kv surge generator has more powerful simulation capabilities and a wider testing range, able to simulate higher intensity lightning and surge conditions. In comparison, the 5kv surge generator has relatively weaker simulation capabilities.
3. Applicable Scenarios: The 5kv surge generator is suitable for devices with lower voltage environment requirements, such as low-voltage power equipment and electronic devices. The 30kv surge generator is suitable for devices with higher voltage environment requirements, such as high-voltage power equipment and transformers.
4. Cost and Size: Due to its lower output voltage, the 5kv surge generator has a relatively lower cost and smaller size. In contrast, the 30kv surge generator has a higher cost and larger size.
In conclusion, there are significant performance differences between 5kv and 30kv surge generators in terms of output voltage, testing capability, applicable scenarios, and cost and size. Choosing the appropriate surge generator depends on specific application scenarios and requirements. The 5kv surge generator isan economical and practical choice for devices with lower voltage environment requirements. The 30kv surge generator is more suitable for devices with higher voltage environment requirements, providing more powerful simulation capabilities and a wider testing range.
1. Purchase suitable equipment: Choose lightning surge generators suitable for the specific voltage level, such as 5kv and 30kv, to ensure accurate and effective testing.
2. Install equipment: Before installing the lightning surge generator, ensure that the installation location has sufficient power supply and space, as well as good grounding conditions. The equipment should be installed in a dry, well-ventilated area and avoid exposure to high temperature, humidity, or dust environments.
1. Check equipment: Before using the lightning surge generator, conduct a comprehensive check of the equipment, including the power cord, grounding wire, trigger wire, etc., to ensure they are intact. Ensure all connection ports of the equipment are securely connected, cables are not worn or damaged. Also, check if there are any loose parts or foreign objects in the equipment. If any issues are found, repair or replace them promptly.2. Grounding requirements: Due to the operating principle of lightning surge generators, it is necessary to ensure proper grounding of the equipment to ensure testing safety and effectiveness. Before using the equipment, ensure that the grounding wire of the equipment is properly connected to the ground and follow relevant safety regulations.
1. Operating environment: During testing, ensure that the testing environment complies with relevant safety standards. Avoid using the equipment in places where explosive gases, flammable substances, or corrosive materials are present. Also, ensure there are no other personnel or sensitive devices in the testing area.
2. Power supply: Before connecting the equipment to the power supply, ensure the power supply is stable, reliable, and meets the requirements of the equipment. Check whether the voltage and frequency of the power supply are consistent with the requirements of the equipment.
3. Protective measures: During lightning surge tests, personal safety is crucial due to the presence of high voltage and high energy. Operators should wear insulated gloves, goggles, and other personal protective equipment and avoid direct contact with the high voltage parts of the equipment. Additionally, ensure there are no flammable or explosive materials around the equipment and keep the area around the equipment clear for operation and emergency evacuation.
4. Operating procedures: Whenusing the 5kv and 30kv lightning surge generators, follow the operation manual and instructions provided by the equipment. Avoid potential pitfalls and errors during operation to ensure the accuracy and effectiveness of the testing. Also, regularly check the operational status of the equipment to ensure its normal operation.
5. Data recording and analysis: During the testing process, record relevant test data, including voltage, waveforms, time, and other information. This data is important for subsequent analysis and evaluation, helping to determine the equipment’s resistance to lightning and its insulation performance. After completing the testing, carefully analyze the data and compare it with standards or specifications to evaluate the equipment’s performance.
In summary, there are performance differences between 5kv and 30kv lightning surge generators, making them suitable for different devices and requirements. Choosing the appropriate equipment can effectively protect equipment from the impact of lightning and surges and ensure the normal operation of the power system. Select based on specific application scenarios and equipment requirements and follow relevant safety operating procedures to ensure the reliability and safety of the equipment.
The SG61000-5 is an automatic surge generator (also called lightning surge immunity test, combination wave generator, surge current generator/surge voltage generator, combined surge voltage and current generator) .

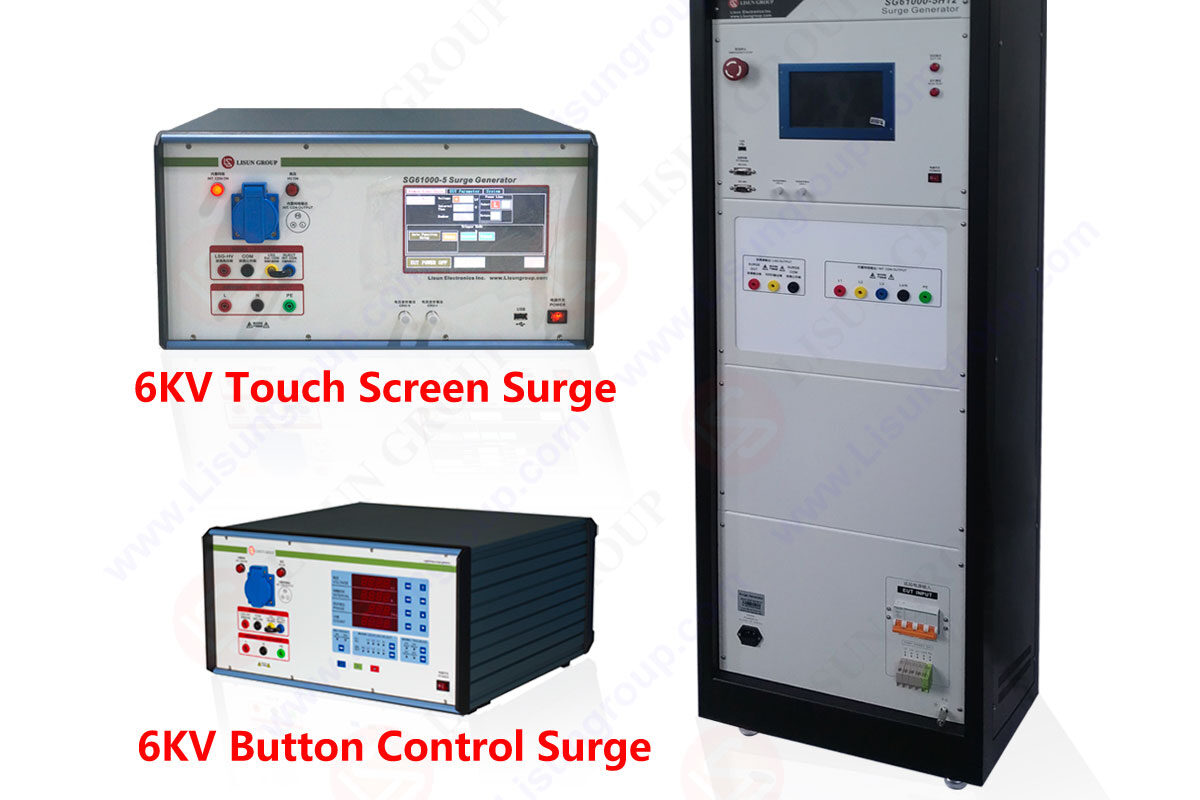

Surge Generator SG61000-5
