Evaluating the Performance of Electrical and Electronic Equipment Using ESD Testing Gun: A Focus on LISUN ESD61000-2 ESD Simulator Guns

Abstract
Electrostatic Discharge (ESD) is a critical concern for the reliability and durability of electrical and electronic equipment. The ESD testing gun is an essential tool to assess the immunity of devices against static electricity. This paper explores the principles, applications, and benefits of ESD testing guns, with a specific focus on the LISUN ESD61000-2 ESD Simulator Guns. Key parameters, testing standards, and performance data are provided to emphasize the device’s role in meeting stringent anti-static requirements.

1. Introduction
In modern electronic systems, electrostatic discharge (ESD) is a significant issue, often leading to device malfunctions or permanent damage. An ESD testing gun simulates real-world static discharge conditions to evaluate the robustness of electronic equipment. The LISUN ESD61000-2 ESD Simulator Gun offers advanced capabilities for static discharge simulation, ensuring compliance with IEC 61000-4-2 standards.

2. Principle of ESD Testing Gun
The core function of an ESD testing gun is to generate a controlled electrostatic discharge. This discharge emulates the static electricity experienced in real-world environments. The LISUN ESD61000-2 utilizes a high-voltage capacitor that charges to a specific level and discharges through a defined resistance, producing a waveform specified by IEC standards.

Key Features of LISUN ESD61000-2:
• Voltage Range: 0 to 30kV (Adjustable)
• Discharge Types: Contact and Air Discharge
• Compliance: IEC 61000-4-2
• User-Friendly Interface: Color touch screen for parameter adjustments

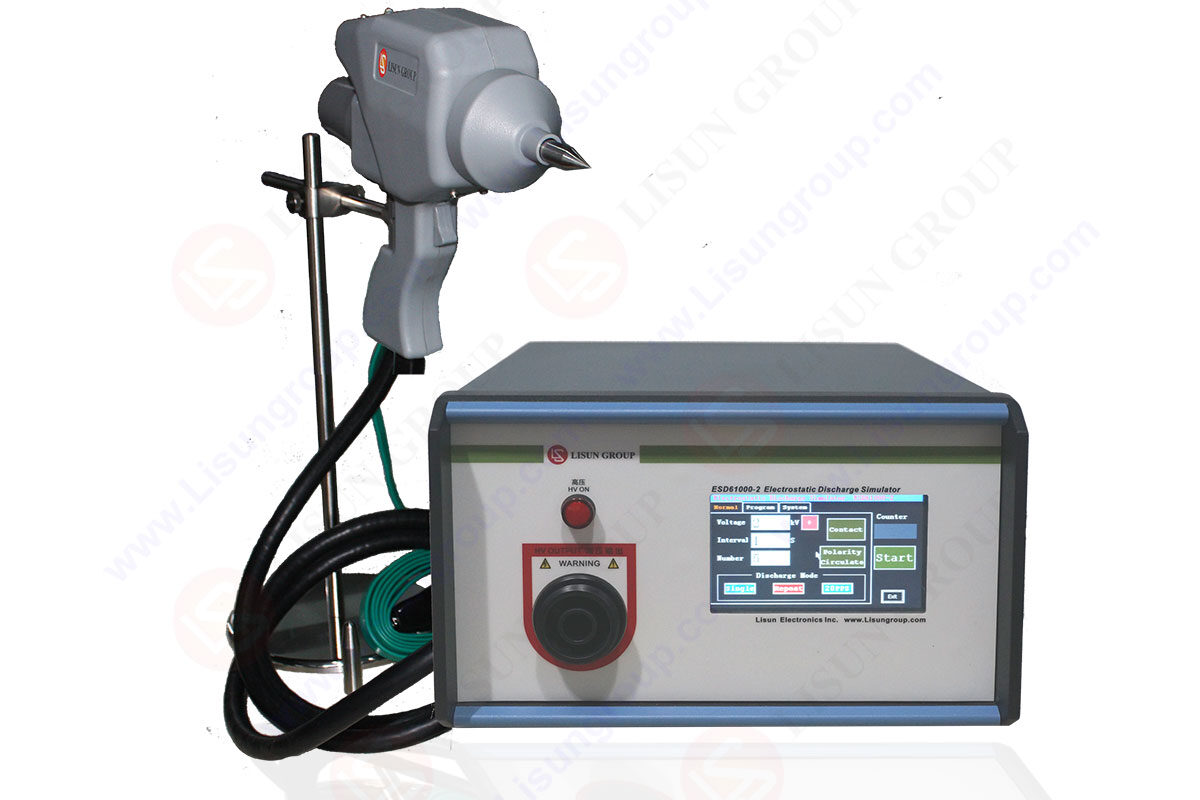

ESD61000-2_Electrostatic Discharge Simulator

3. Testing Procedures Using ESD Testing Gun
The testing process involves evaluating a device’s response to static discharges. The steps include:

Preparation:
• Set up the device under test (DUT) in a laboratory environment.
• Ensure the grounding and isolation requirements are met.

Configuration:
• Select the discharge voltage and waveform on the ESD testing gun.
• Configure the discharge mode (contact or air).

Execution:
• Position the testing gun at the predefined points on the DUT.
• Perform multiple discharges at various voltage levels.

Evaluation: Monitor the DUT for functional disruptions, such as system resets, malfunctions, or permanent damage.

4. Applications of ESD Testing Guns
ESD testing guns like the LISUN ESD61000-2 are widely used in the following industries:

• Consumer Electronics: Ensures reliability of smartphones, laptops, and other devices.
• Automotive Electronics: Tests ECU (Electronic Control Unit) and sensor systems.
• Medical Equipment: Evaluates safety under electrostatic conditions.
• Telecommunication Systems: Validates network devices and communication equipment.

5. Performance Analysis and Data
The LISUN ESD61000-2 delivers exceptional performance in simulating electrostatic conditions. Table 1 highlights key testing results based on voltage levels and DUT responses.

Table 1: Sample Testing Results with LISUN ESD61000-2

6. Advantages of LISUN ESD61000-2
• High Voltage Range: Supports up to 30kV for stringent testing.
• Compact Design: Lightweight and easy to handle.
• Precise Waveform Generation: Ensures repeatability in testing.
• Wide Application: Compatible with diverse industry standards.

7. Standards and Compliance
The LISUN ESD61000-2 complies with global standards such as:

• IEC 61000-4-2: For electromagnetic compatibility.
• EN 61000-6-1/2: Specific for immunity requirements.

8. Challenges and Considerations
While using an ESD testing gun, the following aspects should be considered:

• Proper grounding of the testing setup.
• Selection of suitable discharge points on the DUT.
• Regular calibration of the device to maintain accuracy.

9. Conclusion
The LISUN ESD61000-2 ESD Simulator Gun is a reliable and robust tool for evaluating the electrostatic immunity of electronic equipment. Its compliance with international standards and advanced features make it an indispensable asset for manufacturers and testing labs.

Future Work:
Further research can focus on integrating AI-based diagnostics to predict device failures during ESD testing, enhancing testing efficiency.

References
• LISUN Group. (n.d.). LISUN ESD61000-2 ESD Simulator Guns.
• IEC 61000-4-2: Electromagnetic Compatibility (EMC) Standards.
• Industry Reports on ESD Testing Tools.
