Home Products UL 60335-2-24 Figure 101.DVA.1 Articulate Probe with Flat and Cone Shaped Hand 3.5-4.5 Year Age

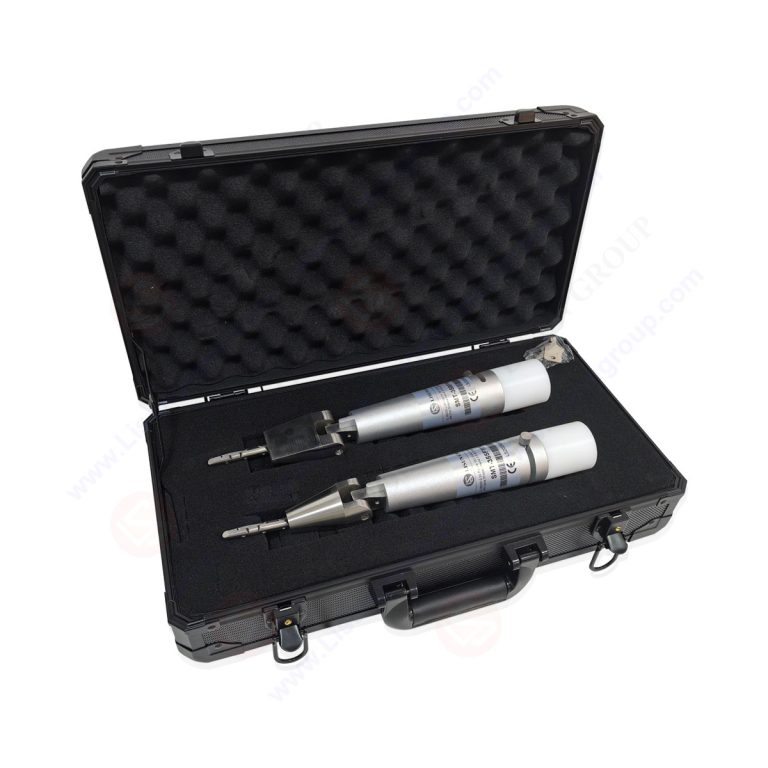

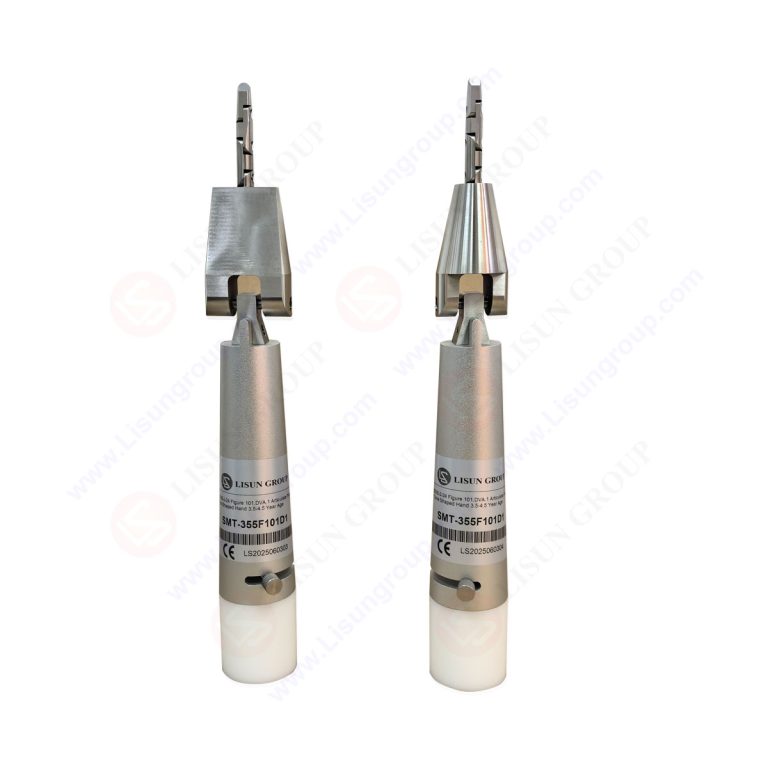

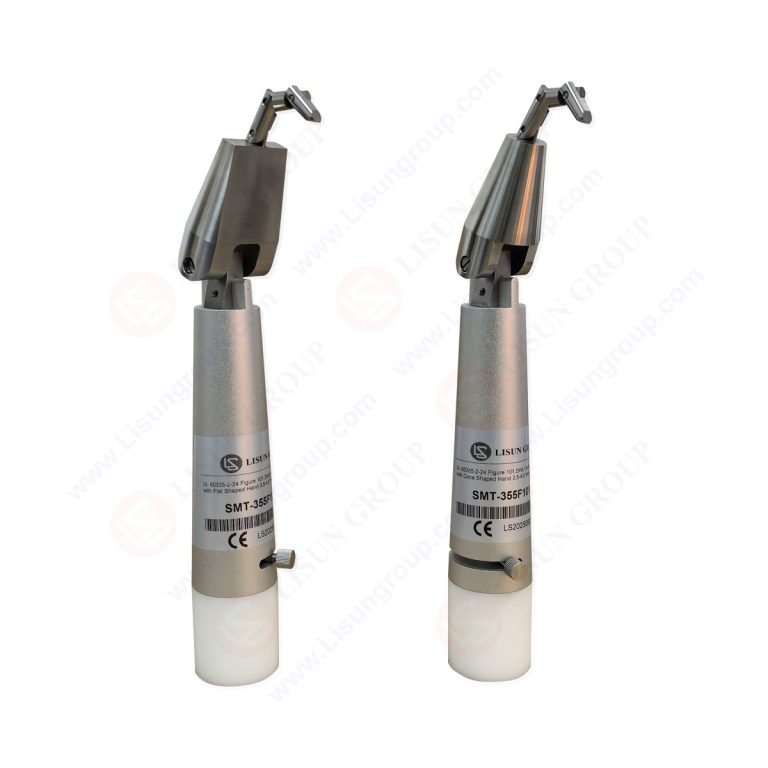

UL 60335-2-24 Figure 101.DVA.1 Articulate Probe with Flat and Cone Shaped Hand 3.5-4.5 Year Age UL 60335-2-24 Figure 101.DVA.1 Articulate Probe with Flat and Cone Shaped Hand 3.5-4.5 Year Age UL 60335-2-24 Figure 101.DVA.1 Articulate Probe with Flat and Cone Shaped Hand 3.5-4.5 Year Age
UL 60335-2-24 Figure 101.DVA.1 Articulate Probe with Flat and Cone Shaped Hand 3.5-4.5 Year Age UL 60335-2-24 Figure 101.DVA.1 Articulate Probe with Flat and Cone Shaped Hand 3.5-4.5 Year Age UL 60335-2-24 Figure 101.DVA.1 Articulate Probe with Flat and Cone Shaped Hand 3.5-4.5 Year Age

UL 60335-2-24 Figure 101.DVA.1 Articulate Probe with Flat and Cone Shaped Hand 3.5-4.5 Year Age

Product No: SMT-355F101D1

Leave a Message

=
  • Description

  • The UL 60335-2-24 Figure 101 DVA-1 Articulate Probe with Flat and Cone-shaped Hand for 3.5 – 4.5-year-age is a crucial tool for safety testing. It features a precisely designed articulated structure, accurately simulating the hands of children aged 3.5 – 4.5 years old. With both flat and cone-shaped hand parts, it can effectively access various areas during safety inspections of electrical appliances, helping to detect potential safety hazards and ensure product safety compliance.

    Standards:

    Standards No.

    Clause/Figure

    Standards Name

    UL 60335-2-24:2020

    Figure 101

    Household and similar electrical appliances – Safety – Part 2-24: Particular requirements for refrigerating appliances, ice-cream appliances and ice-makers

    Specifications:

    Parameters​

    Details​

    Hand Shape​

    Flat and cone – shaped​

    Applicable Age Range​

    3.5 – 4.5 years old​

    Structure​

    Articulated​

    Test Procedures​:
    1. Prepare the test environment according to the relevant safety regulations.​
    2. Ensure the probe is in good condition and properly calibrated if necessary.​
    3. Identify the areas on the electrical appliance that need to be tested for child – accessibility.​
    4. Gently place and maneuver the articulated probe with its flat and cone – shaped hand parts to reach the test areas, simulating the actions of a 3.5 – 4.5 – year – old child’s hand.​
    5. Check if the probe can access the areas easily and record any observations.​
    6. After the test, clean and store the probe properly.

    Applications​:
    1. Safety testing of electrical appliances for home use, like refrigerators and ice – cream makers, to ensure they meet safety requirements for children’s access.​
    2. Assessment of the safety of children’s electronic toys, checking if there are parts that can be accessed by children aged 3.5 – 4.5 years old which may cause potential risks.​
    3. Evaluation of the safety of small household appliances such as mini – ovens and toasters, making sure children in the 3.5 – 4.5 – year – old age group cannot reach dangerous parts.

    UL 60335-2-24 Figure 101.DVA.1

    UL 60335-2-24 Figure 101.DVA.1
