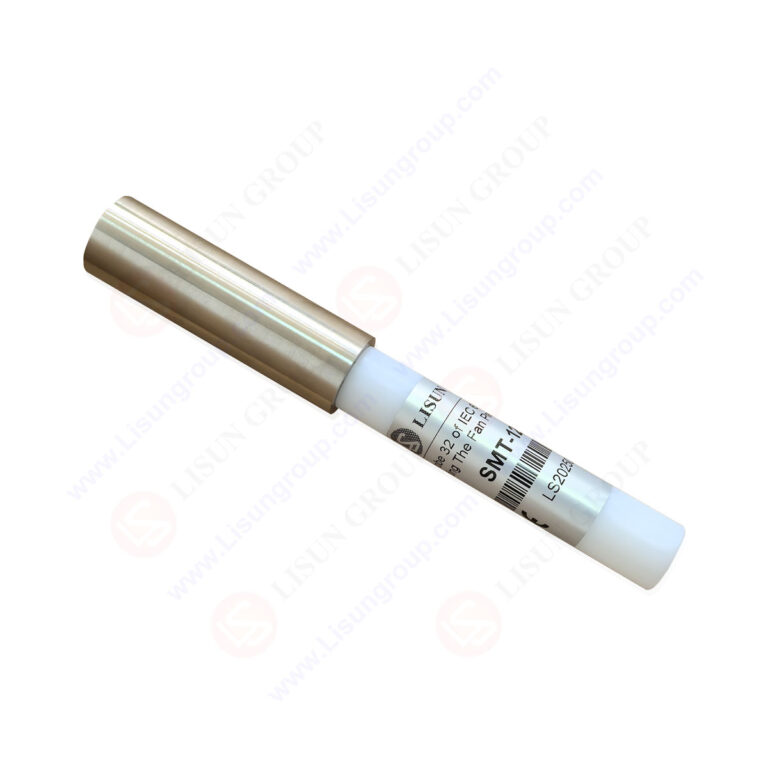

Test Probe 32 of IEC 61032 – Test Thorn for Testing The Fan Preventive Safety

This IEC 61032 Figure 15 Test Probe 32 is a specialized tool for verifying the safety of fan guards in household and similar electrical appliances. It features a rigid, precision-engineered design with a 25mm diameter—critical for simulating access to hazardous mechanical parts (like rotating fan blades) through guard openings. Made from durable metal to withstand repeated testing, it checks if fan guards block unintended contact with moving components, preventing injuries.

Specifications:
• Probe Type: IEC 61032 Test Probe 32 (“test thorn” for fan guard safety)
• Probe Diameter: 25 mm (precision-machined for standard compliance)
• Material: High-strength metal (resists bending during testing)
• Core Function: Verifies fan guards block access to hazardous mechanical parts (e.g., rotating blades)
• Applied Force: No appreciable force (mimics accidental, light contact with fan guards)
• Compatibility: Household and small commercial fans (ceiling fans, table fans, etc.)

Test Procedures:
• Inspect the test probe for damage (e.g., bending, dents) that could affect accuracy.
• Power on the fan and ensure its blades are rotating normally.
• Gently guide the test probe toward openings in the fan guard from multiple angles.
• Check if the probe can reach or touch the rotating fan blades.
• Record whether the fan guard prevents access to hazardous parts (pass/fail).

Applications:
• Safety testing of household table fan guards.
• Compliance checks for ceiling fan blade guards.
• Verification of industrial small fan guards (e.g., workshop exhaust fans).
• Safety testing for fan heaters’ integrated fan guards.
• Quality control for portable pedestal fan guards to prevent blade contact hazards.
