Product No: SMT-1213C
Meets IECCSA & UL requirements Test Probe 13 of Short Test Pin – Fig. 9 of EN 61032
This Test Probe Pins (Figure 9 – Test probe 13 of IEC61032) is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (see IEC60536).
Conforms to:
Standard IEC61032, IEC60065, IEC60335-1, IEC60950, IEC60601, IEC60745 and UL etc.
Technical Parameter:
Test probe diameter:3 mm
Test probe length:15 mm
Baffle plate thickness:4 mm
Baffle plate diameter:25 mm
Handle length:20 mm
Handle diameter:10 mm

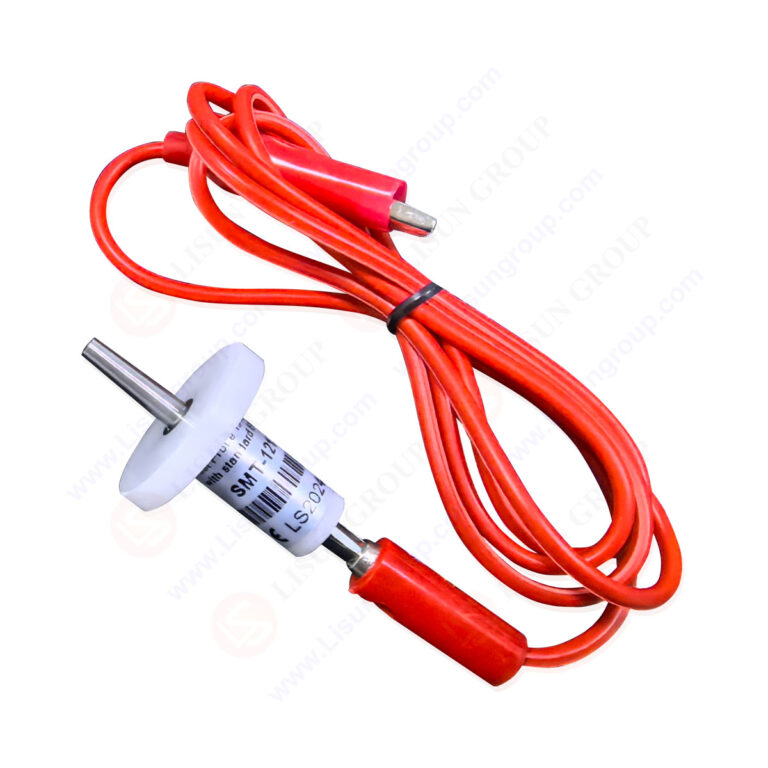

Test Probe 13 with Cable with standard EN61032
