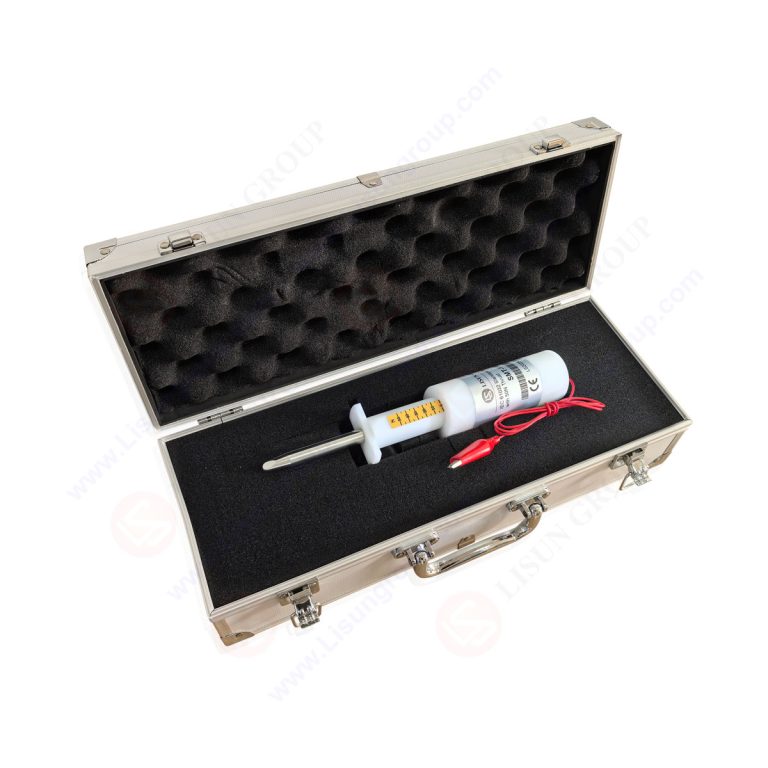

IEC 61032 Standard Test Probe 11 with 50N Thrust

Specifications:
• Probe Type: IEC 61032 Figure 11 Test Probe 11 with 50N Thrust
• Probe Material: Stainless steel (rigid, corrosion-resistant, maintains dimensional stability under 50N force)
• Handle Material: Nylon (insulating, heat-resistant, non-slip for controlled force application)
• Key Dimensions:
– Probe Diameter: 12 mm ± 0.1 mm
– Effective Probe Length: 100 mm ± 0.2 mm
– Total Length (Probe + Handle): 200 mm ± 0.5 mm
– Probe Tip: Hemispherical, radius 6 mm ± 0.05 mm (smooth to avoid enclosure damage)
• Applied Thrust: 50N ± 1N (precise force to simulate moderate external pressure on enclosures)
• Core Function: Verifies enclosure mechanical resistance and inaccessibility of hazardous parts in electrical equipment per IEC/UL standards

Test Procedures:
• Inspect the probe for damage (e.g., bent body, cracked handle) and confirm thrust calibration.
• Power on the electrical equipment and let it reach normal operating mode.
• Hold the handle and align the probe tip with target enclosure areas (e.g., weak points, gaps).
• Apply steady 50N thrust to the probe—maintain force for 10 seconds (per standard guidelines).
• Check if the probe penetrates the enclosure or touches hazardous internal parts.
• Record whether the equipment meets safety requirements (pass/fail).

Applications:
• Safety testing of household appliances (e.g., microwave ovens, dishwashers) to validate enclosure resistance.
• Compliance checks for industrial electrical enclosures (e.g., factory control panels) per IEC 61032 Figure 11.
• Verification of commercial equipment (e.g., vending machines) to ensure enclosures withstand moderate force.
• Quality control for outdoor electrical gear (e.g., weatherproof junction boxes) during manufacturing.
• Post-production audits of consumer electronics (e.g., large appliance casings) to meet global IEC/UL safety standards.
