IEC 60529 IP20C Test Probe with 50N Force

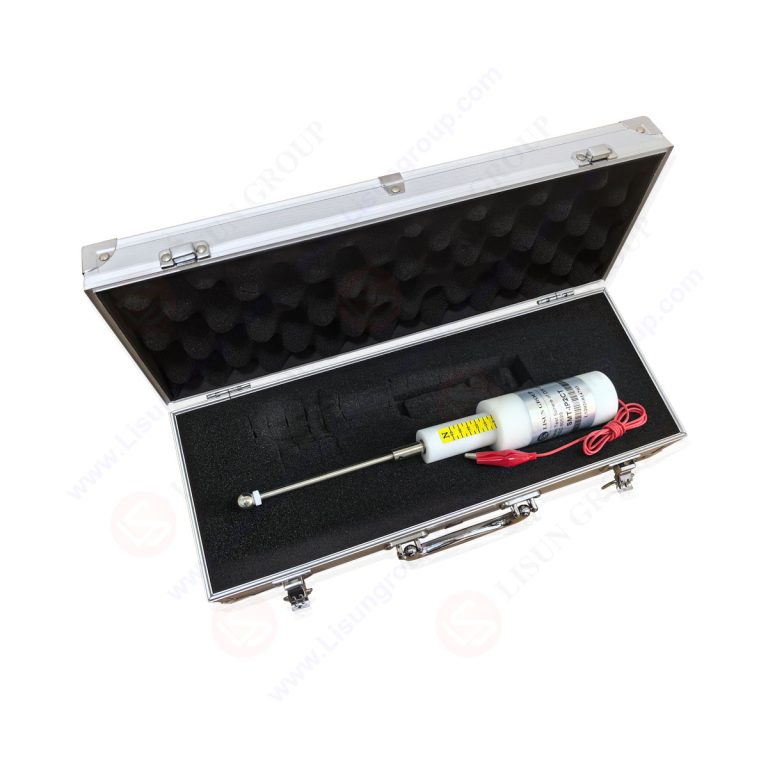

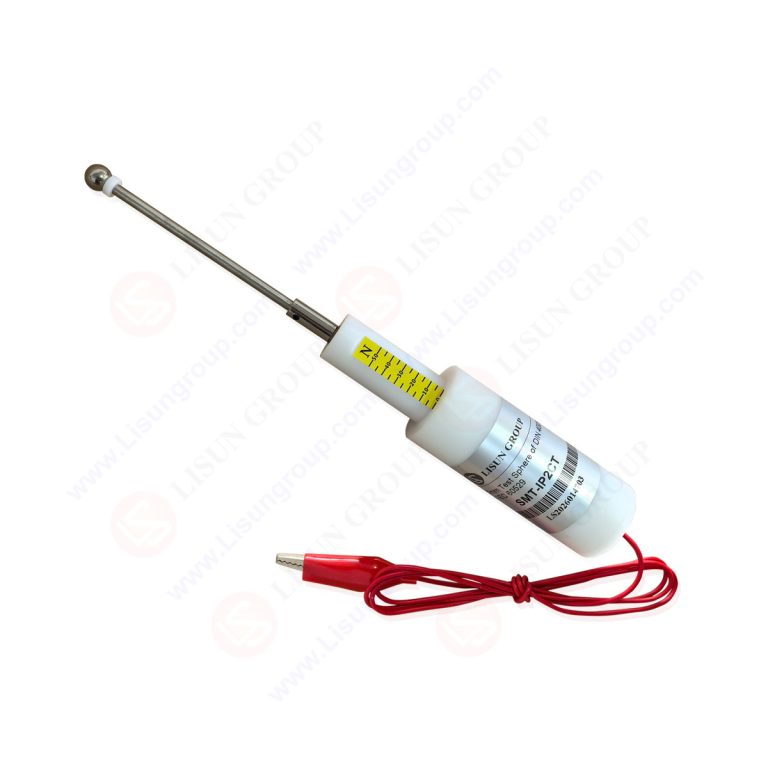

This IP20C Test Probe is a dedicated tool for verifying electric shock protection in household and similar electrical appliances, fully compliant with global safety norms fully meet Clause 5.2 IEC 60529 Figure 5. It features a 12.5mm precision metal test ball (for simulating small object access) and an insulating handle guard to ensure user safety. Designed to apply adjustable thrust forces (10N-50N), it checks if equipment enclosures block access to hazardous live parts—critical for meeting IP20C protection requirements. Its durable construction (corrosion-resistant metal ball, robust insulation) withstands repeated testing, making it essential for manufacturers, labs, and certifiers.

Specifications:
• Test Ball Diameter:  12.5mm (±0.1mm tolerance; matches IP20C small-object access requirements)
• Baffle Plate Dimensions Diameter: 4mm (±0.1mm); Thickness: 10mm (±0.2mm) – prevents over-insertion
• Handle Specifications Diameter: 4mm (±0.1mm); Material: Insulating plastic (flame-retardant, UL94 V-0 rating)
• Adjustable Thrust Force :  10N, 20N, 30N, 40N, 50N (±3N tolerance per force level; compatible with tension meters for calibration)
• Test Ball Material:  High-grade stainless steel (corrosion-resistant, maintains spherical shape)
• Overall Length:  Approximately 100mm (optimized for easy handling during testing)

Test Procedures:
• Inspect the probe for dented balls, cracked insulation, or loose components; confirm force calibration and dimensions meet specs.
• Power off the electrical appliance under test and place it on a flat, stable surface.
• Attach a tension meter (if needed) to verify the desired thrust force (e.g., 30N for basic IP20C checks).
• Hold the insulating handle, align the 12.5mm ball with potential access points (e.g., appliance vents, control gaps).
• Apply the selected thrust force steadily and check if the ball touches live/hazardous parts.
• Record results to confirm compliance with IP20C protection standards.

Applications:
• Electric shock protection testing of household appliances (e.g., refrigerators, washing machines) per IEC 60529 IP20C.
• Safety testing of consumer electronics (e.g., desktop printers, audio systems) to ensure no access to live parts.
• Pre-certification testing (e.g., CE, GS) for electrical devices seeking entry into EU/UK markets, validating IP20C compliance.

IEC 60529 IP20C Test Probe with 50N Force
