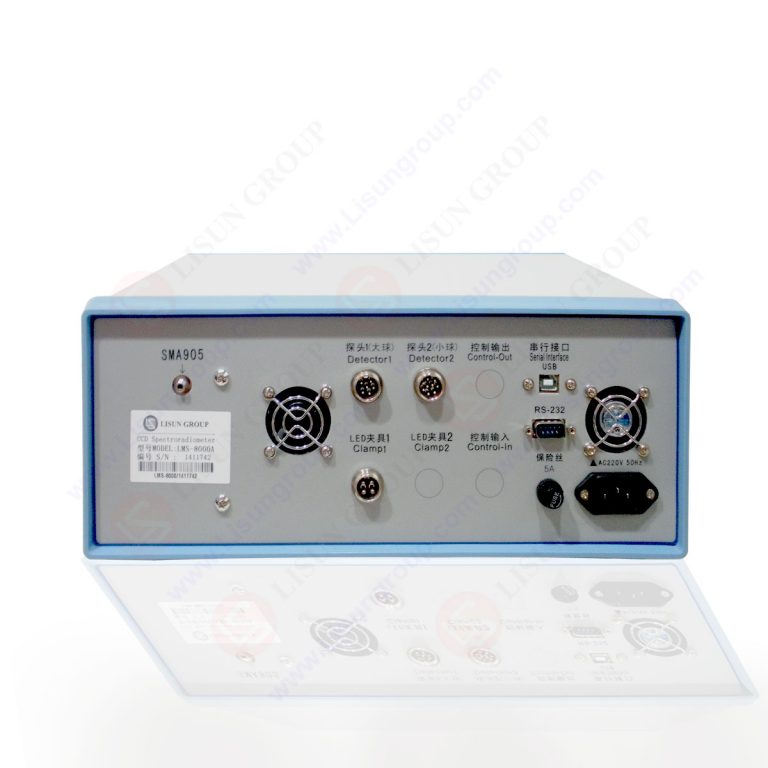

Array CCD Spectroradiometer

LMS-8000A/LMS-8000AS Array CCD Spectro-photometer is used for identifying the performance of individual LED. It is designed to have a capability of producing any visible spectral distribution, mimicking various light sources in the visible region by feedback control of the radiant power emitted by individual LEDs. This LED test system will be used as a transfer standard for photometric, colorimetric and radiometric applications.

LMS-8000AS is updated version for LMS-8000A, LMS-8000AS can connect two integrating spheres at the same time. That’s mean LMS-8000AS be switch between the two spheres conveniently, but no need to take out the detector cable and optical fiber between the big sphere and small sphere.

Measures:
• Colorimetric: Total Radiant Intensity, Dominant Wavelength, Peak Wavelength, Color Coordinates, Half-Bandwidth, Spectral Purity, Correlated Color Temperature (CCT), Color Rendering Index (CRI).
• Photometric: Total Luminous Flux (Lumen), Luminous Efficiency, Radiant
• Electrical: Forward Voltage, Reverse Voltage, Forward Current, Reverse Current, Voltage, Current, Power, Power Factor.

Standard:
CIE 177 “Color Rendering of White LED Light Sources”
CIE84 “The measurement of luminous flux”
CIE-13.3 “Method of Measuring and Specifying Colour Rendering Properties of Light Sources”
LM-79-19 “Optical and Electrical Measurements of Solid State Lighting Products”
IESNA LM-63-2 “IESNA Standard File Format for the Electronic Transfer of Photometric Data and Related information”
IES LM-80-08 “Measuring Lumen Maintenance of LED Light Sources”
ANSI-C78.377 “Specifications for the Chromaticity of Solid State Lighting products for Electric Lamps”
(EU) 2019/2015 “COMMISSION DELEGATED REGULATION”

Specification:
• Spectral Range Wavelength:  380nm~800nm (Option is 200~800nm and 380nm~1050nm)
• Spectral Wavelength Accuracy: ±0.3nm, Wavelength Reproducibility: ±0.1nm, Sample Scanning Steps: ±0.1nm
• Accuracy of Chromaticity Coordinate (Δx, Δy): ±0.003
• Correlated Color Temperature CCT: 1, 500K~25, 000K, CCT Accuracy: ±0.5%
• Color Rendering Index Range: 0~100.0, Accuracy: ±(0.3%rd±0.3)
• Photometric linear: ±0.5% , Stray light: <0.015%(600nm) and <0.03%(435nm), Time of integration: 0.1mS~20S
• Built-in a 5000.0mA Constant Current DC Power Source which can light on LED and standard lamp
• It can work with an intensity device (ITD-8000) to test the single LED intensity directly
• Connect with PC via USB, English version software can be run under Win7, Win8 and Win10
