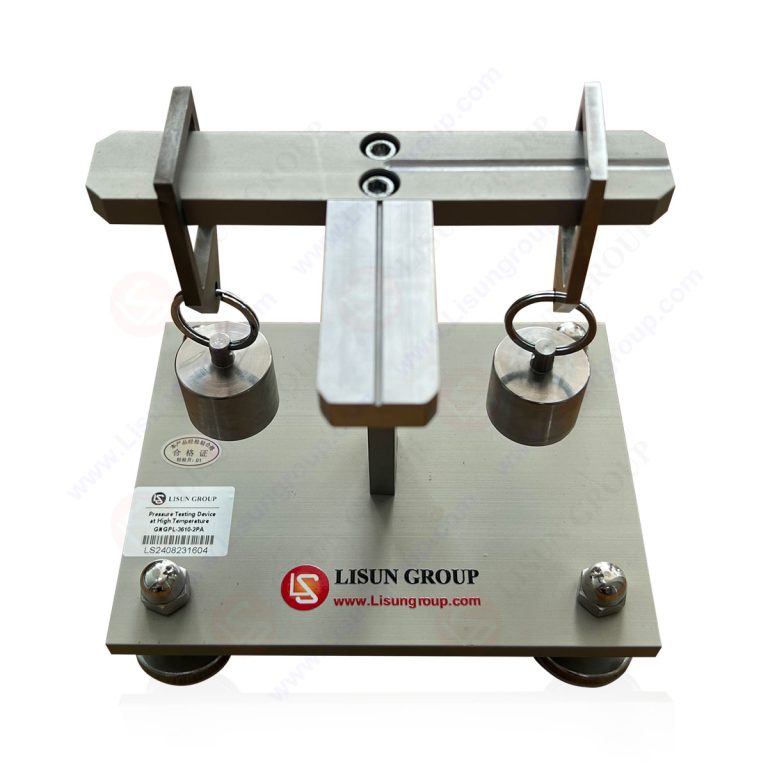

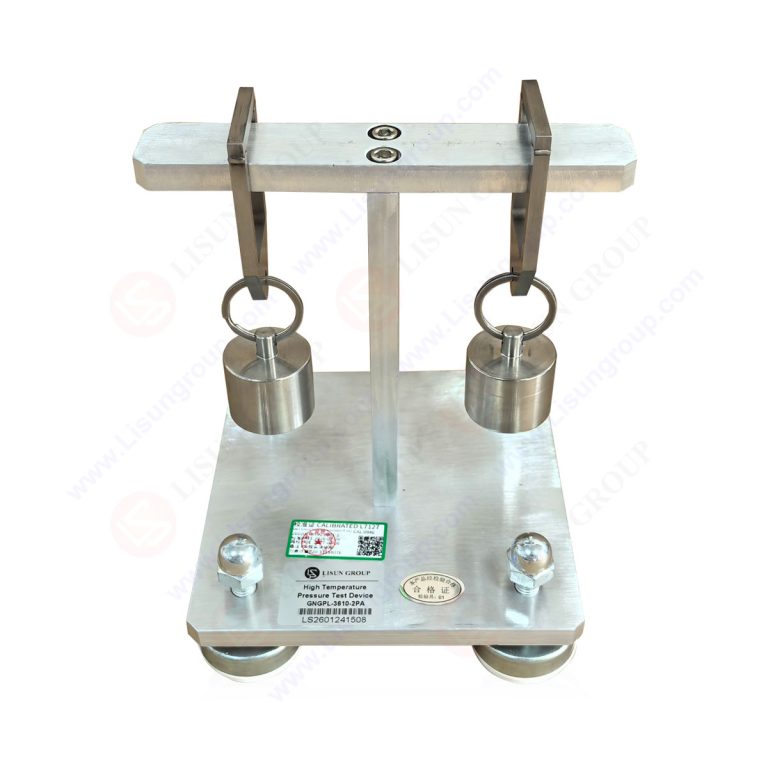

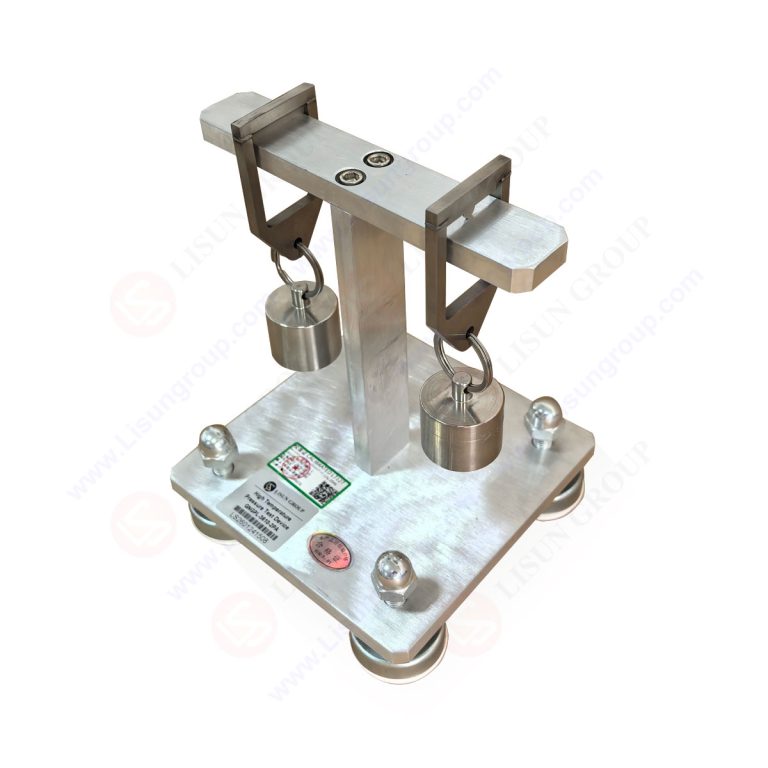

Pressure Testing Device at High Temperature

GNGPL-3610-2PA Pressure Testing Device at High Temperature is according to BS1363 Figure 10, IEC60598-2-20 Clause 20.15 (GB7000.220), IEC60811-3-1 Clause 8 and Figure 1 (GB/T2951.31 Clause 8 and Figure 1), IEC60884-1: 2006 Clause 30.1 and Figure 41( GB2099.1-2021 Clause 30.1 and Figure 41), AS/NZS3112 Figure 2.5, BS1363 Figure E10, IC60598-2-20 (also known as Rope lamp insulation skin hardness test rack), IEC60811-3-1 Clause 8 and Figure 1 (GB/T2951.31 Clause 8 and Figure 1) and other standard requirements are suitable for thermal resistance testing of insulating materials.

• Sample range, application, principle, structure, and environmental samples and restrictions: thermal resistance test for insulating materials
• Samples and restrictions: Inserting and insulation and sheets of cables and optical cables greater than 0.4mm with insulation sheaths.
• Test Application: High temperature performance test for the abnormal environment of the material for inserting, cables and optical cable insulation protectives.
• Test principle: Use 0.7mm thick circular or rectangular blades to apply a certain gravity to the sample in high temperature environments, and measure the depth of the indentation after the test to achieve the high temperature resistance performance of the test sample.
• Equipment structure and characteristics: hardness testing rack, with round mouth blade and rectangular blade and load.

Specifications:

Figure 41 Test Apparatus for pres test at high temperature
