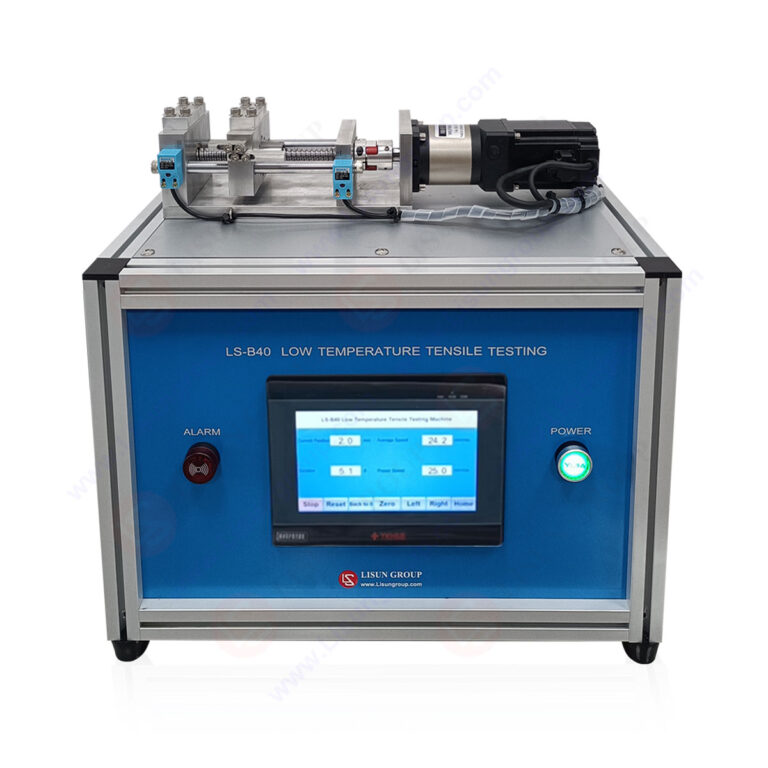

IEC 60811-1-4 Clause 8.3 and 8.4 Low Temperature Tensile Testing Machine

Product No: LS-B40

Leave a Message

=
  • Description
  • Video

  • The LS-B40 Low Temperature Tensile Testing Machine is a specialized device designed for testing the low-temperature tensile properties of cable insulation and sheathing. This equipment requires the use of a low-temperature environment apparatus. Prepared specimens are held in place by specific clamps, and tensile force is applied to the specimens at a stable tensile speed. Key indicators such as elongation of the specimens under low-temperature conditions are measured to evaluate the tensile resistance of cable insulation and sheathing materials in low-temperature environments, ensuring that the tested materials and related cable products meet the corresponding technical specifications.

    Standards:

    Standards Standards Name
    IEC 60811-1-4:2002 Insulated and sheathed cables and flexible cords – Part 1-4: Methods of test – Low temperature tests
    GB/T 2951.14-2008 电缆和光缆绝缘和护套材料通用试验方法 第 14 部分：通用试验方法 低温拉伸试验
    GB/T 2951.11-2008 电缆和光缆绝缘和护套材料通用试验方法 第 11 部分：通用试验方法 厚度和外形尺寸测量 机械性能试验

    Specifications：

    Power Supply Voltage 220~240V(AC), 50/60Hz
    Displacement Measurement Digital display ±1mm
    Jaw Type Non-self-tightening
    Tensile Speed 25±5mm/min
    Sample Specification Type I and II dumbbell specimens

    P.S. The LS-B40 Low Temperature Tensile Testing Machine need to work with LISUN GDJW-100A (Interal Size 40*40*60cm) High and Low Temperature Chamber

    Applications:
    1. Low-temperature tensile property testing of cable insulation materials
    2. Low-temperature tensile property testing of cable sheath materials
    3. Low-temperature elongation assessment of polyethylene (PE) insulation
    4. Low-temperature tensile property verification of polypropylene (PP) insulation

    IEC 60811-1-4 Clause 8.3

    IEC 60811-1-4 Clause 8.4
