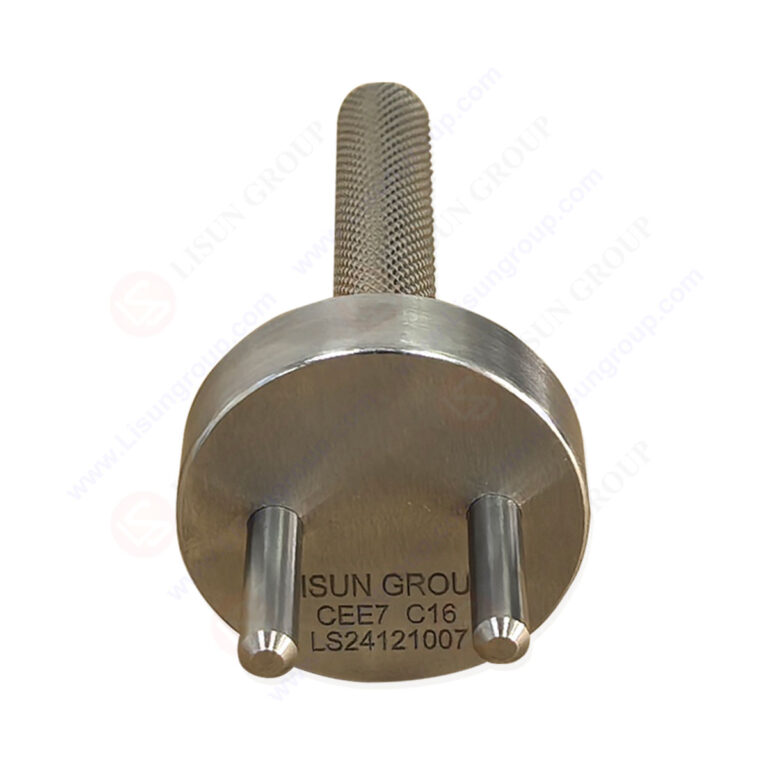

Gauges of CEE 7 C16 for 10/16A 250V Two-pole Socket-outlets with Side Earthing-contacts

Gauges of CEE 7 C16 for 10/16A 250V Two-pole Socket-outlets with Side Earthing-contacts is specifically designed for verifying the structural and dimensional compliance of 10/16A 250V two-pole socket-outlets with side earthing-contacts against CEE7 standards. It features stable and reliable performance, with key characteristics such as precise dimensions, strict tolerance control, appropriate material hardness, and a low thermal expansion coefficient, ensuring accurate and consistent testing results for relevant electrical components.

Specifications:
• Rated current compatibility: 10/16A
• Rated voltage compatibility: 250V
• Applicable socket type: Two-pole with side earthing-contacts
• Compliance standard: CEE7.
• Material hardness: Above 50HRC
• Material property: Low thermal expansion coefficient
• Dimensional feature: Stable and reliable with strict tolerance control
• Surface finish: Meets standard requirements for surface roughness

Test Procedures:
• Ensure the test gauge and the socket-outlet to be tested are clean and free from debris or damage that may affect test results.
• Align the gauge with the socket-outlet according to the structural requirements of CEE7 standards.
• Attempt to insert the gauge into the socket-outlet in the correct orientation.
• Check if the gauge can be properly inserted without excessive force, verifying the dimensional matching of the socket’s contact openings.
• Inspect the fit between the gauge and the socket’s earthing contacts to confirm structural compliance.
• Record whether the socket-outlet meets the CEE7 standards based on the gauge’s insertion performance and fit.
• Remove the gauge gently after the test and store it in a suitable environment to maintain its precision.

Applications:
• Quality inspection of 10/16A 250V two-pole socket-outlets with side earthing-contacts in the electronics industry.
• Compliance testing of relevant electrical appliances equipped with matching socket-outlets.
• Dimensional and structural verification in the production process of plugs and sockets.
• R&D testing for new socket-outlet designs to ensure adherence to CEE7 standards.
• Quality control and auditing in industries manufacturing electrical equipment with compatible socket-outlets.
• Third-party testing and certification services for electrical components related to two-pole socket-outlets with side earthing-contacts.

Gauges for 10/16A 250V Two-pole Socket-outlets with Side Earthing-contacts of CEE7 C16
