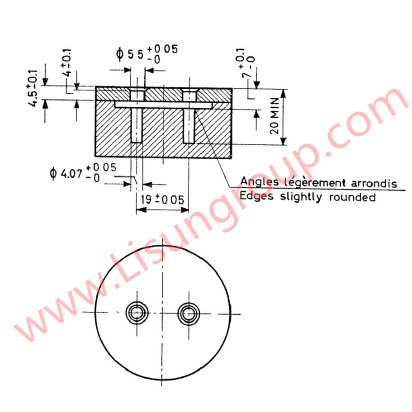

Gauges C 13 of CEE 7 for 2.5A 250V Two-pole Plugs for Interchange Ability

This Gauges C 13 of CEE 7 for 2.5A 250V Two-pole Plugs for Interchange Ability is a dedicated gauge meticulously designed in line with the IECEE CEE-7 “Specification for plugs and socket-outlets for domestic and similar purpose” C 13 standard. It is specifically crafted for verifying the interchange ability of 2.5A 250V two-pole plugs, enabling smooth insertion of plugs without excessive force to ensure compliance with relevant dimensional and functional requirements, thus supporting quality control and performance validation in plug production and application scenarios.

Specifications:
• Adheres to IECEE CEE-7 “Specification for plugs and socket-outlets for domestic and similar purpose” C 13 standard
• Applicable to 2.5A 250V two-pole plugs
• Focuses on verifying the interchange ability of the target plugs
• Features slightly rounded edges for optimized usability
• Allows plugs to be inserted without undue force, ensuring the engagement face contacts the gauge surface
• Complies with specified dimensional requirements in both metric (mm) units

Test Procedures:
• Prepare the 2.5A 250V two-pole plug that requires interchange ability verification.
• Ensure the gauge is placed on a flat, stable surface to maintain accuracy during testing.
• Align the plug with the gauge’s insertion interface, ensuring proper positioning without misalignment.
• Insert the plug into the gauge gently, applying no undue force throughout the process.
• Check if the engagement face of the plug fully comes into contact with the surface of the gauge.
• Confirm that the insertion process is smooth and meets the standard requirements; if insertion is forced or contact is incomplete, the plug fails the interchange ability verification.

Applications:
• Dimensional and interchange ability verification during the production of 2.5A 250V two-pole plugs
• Quality control inspections in manufacturing facilities to ensure batch consistency of plugs
• Compliance testing for 2.5A 250V two-pole plugs to meet IECEE CEE-7 C 13 standard requirements
• Interchange ability validation for plug prototypes in R&D processes
• Third-party testing and certification of 2.5A 250V two-pole plugs for market access
• Maintenance and quality auditing of existing 2.5A 250V two-pole plug inventory
