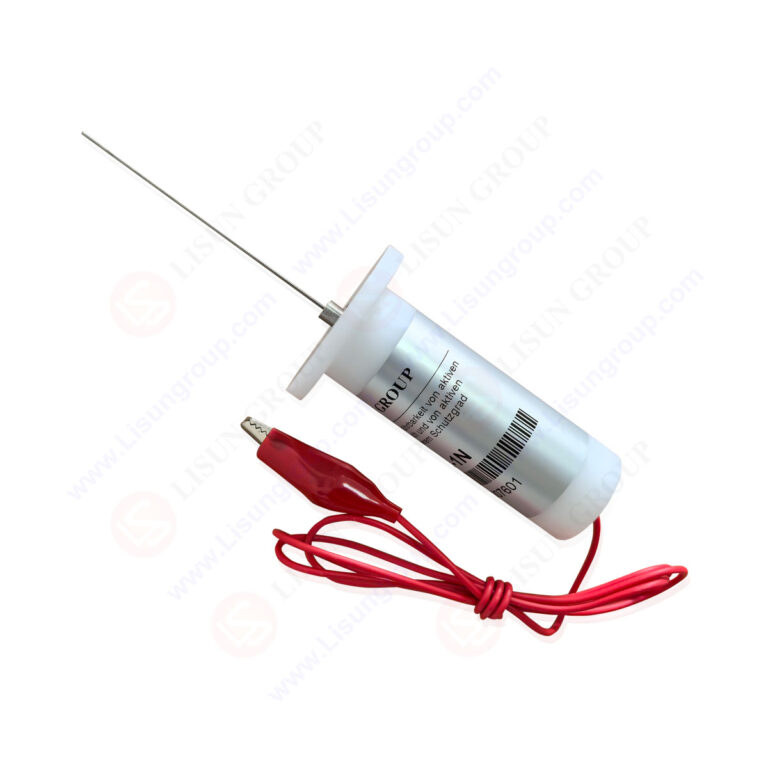

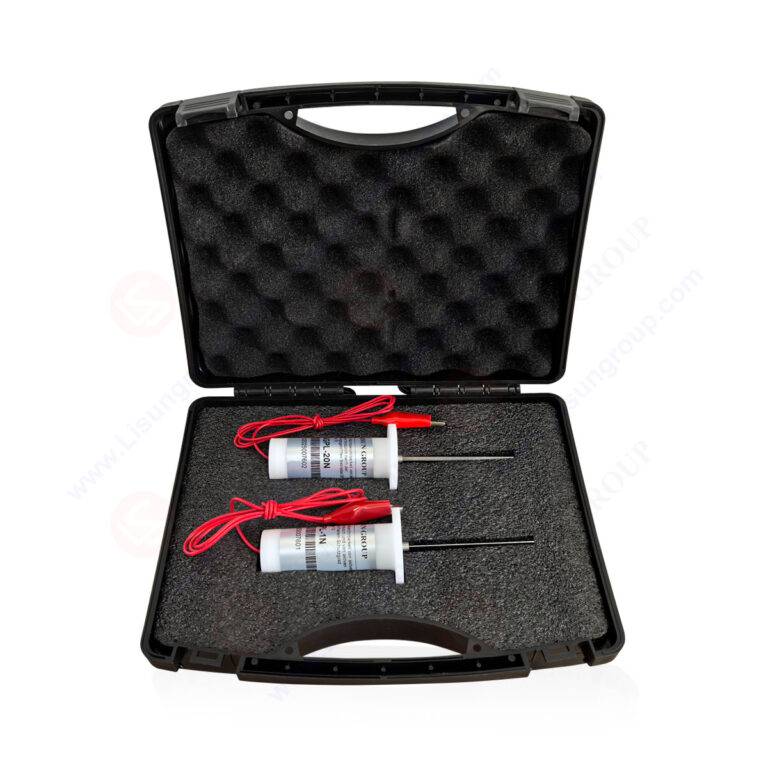

DIN VDE 0620-1 Lehre 13 Lehre zur Prüfung der Nichtberührbarkeit von aktiven Teilen durch die Shutter hindurch und von aktiven Teilen von Steckdosen mit höherem Schutzgrad

This DIN VDE 0620-1 Lehre 13 Lehre zur Prüfung der Nichtberührbarkeit von aktiven Teilen durch die Shutter hindurch und von aktiven Teilen von Steckdosen mit höherem Schutzgrad is meticulously engineered and manufactured in strict compliance with the relevant requirements of the VDE0620-1:2010 standard. Its core function is to verify the non-accessibility of live parts through shutters and the non-accessibility of live parts in sockets with a higher protection level, ensuring that the structure and dimensions of plugs and sockets meet the specified standard criteria. Crafted with high-quality rigid steel wire, it features precise mechanical properties to guarantee accurate and reliable test results.

Specifications:
• Material: Rigid steel wire
• Key dimensions (mm): ø50, ø30, 6, 85, ø1+0015
• Radius (r): 0.05 mm
• Calibration force: 1 N applied along the axis of the rigid steel wire
• Calibration requirement: When 1 N force is applied, the plane A – A’ is brought to practically the same level as the plane B – B’ due to the internal spring characteristic

Test Procedures:
• Prepare the plug or socket sample to be tested, ensuring it is in a usable and undamaged state.
• Check the test gauge for any visible damage or deformation, and confirm it has been calibrated in accordance with the specified requirements.
• Apply a 1 N force along the axis of the rigid steel wire of the gauge to complete the pre-test calibration.
• Insert the gauge into the socket or align it with the relevant part of the plug as required by the test standard.
• Verify whether the live parts of the sample are accessible through the shutters or if the live parts of the high-protection-level socket are accessible.
• Record the test results to determine if the sample complies with the VDE0620-1:2010 standard.

Applications:
• Quality inspection and compliance testing of plugs and sockets in the electronics industry.
• Conformity verification of electrical appliances equipped with matching plugs or sockets to meet standard requirements.
• R&D and production quality control in plug and socket manufacturing enterprises.
• Compliance testing and certification procedures for electrical products to meet German and European market access standards.
