CEE 7 C23 Device for Measuring The Contact Pressure of Earthing Contacts of 10/16A 250V Two-Pole Socket-Outlets with Side Earthing-Contacts

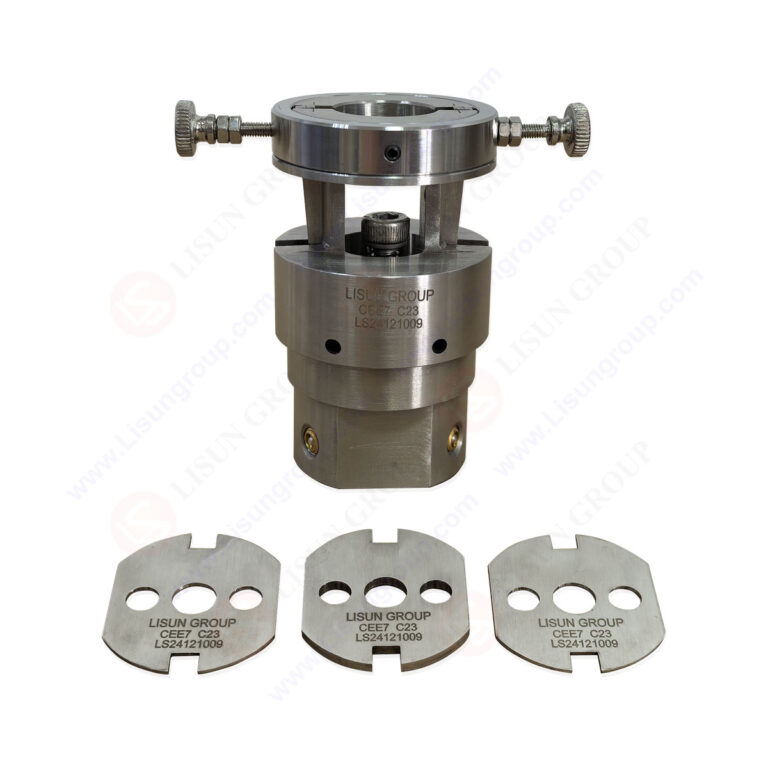

CEE 7 C23 Device for Measuring The Contact Pressure of Earthing Contacts of 10/16A 250V Two-Pole Socket-Outlets with Side Earthing-Contacts is specialized in measuring the contact pressure of earthing contacts for 10/16A 250V two-pole socket-outlets with side earthing-contacts, strictly adhering to CEE7 standards. It is meticulously crafted to meet standard requirements for dimensions, tolerances, material quality, hardness, and surface roughness. With material hardness exceeding 50HRC and a low thermal expansion coefficient, the device maintains stable and reliable dimensional accuracy, ensuring precise and consistent measurement results for the earthing contact pressure of targeted socket-outlets.

Specifications:
• Rated current compatibility: 10/16A
• Rated voltage compatibility: 250V
• Applicable product type: Two-pole socket-outlets with side earthing-contacts
• Testing function: Measuring contact pressure of earthing contacts
• Compliance standard: CEE7
• Material hardness: Above 50HRC
• Material property: Low thermal expansion coefficient
• Dimensional feature: Stable and reliable with strict tolerance control
• Surface finish: Meets standard requirements for surface roughness
• Core application focus: Earthing contact pressure verification

Test Procedures:
• Prepare the testing device and the 10/16A 250V two-pole socket-outlet with side earthing-contacts, ensuring both are clean, free from debris, corrosion, or damage that could impact measurement accuracy.
• Secure the socket-outlet in a stable and fixed position to prevent displacement during the testing process.
• Align the testing device with the side earthing contacts of the socket-outlet in accordance with CEE7 standard specifications.
• Gently place the device’s measuring component in contact with the earthing contacts, ensuring full and proper contact without applying excessive preliminary force.
• Activate the device to measure the contact pressure of the earthing contacts, following the standard’s specified operating parameters.
• Record the measured contact pressure value accurately and repeat the measurement 2-3 times to ensure data consistency.
• Compare the average measured value with the requirements outlined in CEE7  standards to determine if the socket-outlet’s earthing contact pressure meets compliance criteria.
• After completing the test, detach the device carefully and store it in a dry, dust-free environment to preserve its measurement precision and service life.

Applications:
• Quality inspection of 10/16A 250V two-pole socket-outlets with side earthing-contacts in the electronics industry.
• Compliance testing of earthing contact pressure during the production process of plugs and sockets.
• Performance verification in the R&D phase of new socket-outlet designs to ensure adherence to CEE7 standards.
• Routine quality control in manufacturing facilities producing electrical appliances equipped with compatible socket-outlets.
• Third-party testing and certification services for two-pole socket-outlets with side earthing-contacts, focusing on earthing contact pressure.
• Compliance auditing in industries specializing in the production and supply of domestic and similar-purpose electrical connectors.

Device for Measuring The Contact Pressure of Earthing Contacts of 10/16A 250V Two-Pole Socket-Outlets with Side Earthing-Contacts of CEE7 C23
