Visual IPX8 Waterproof Leakage Detector – Air Tightness Testing Equipment

The main function of the IPX8 visual leakage test machine is to detect the sealing of the product. The purpose of detecting product sealing through the pressure in the test warehouse is fully automatically controlled by automatic and precisely controlled the test warehouse. The leakage point of the sample is easy to use the product design, improvement, verification and factory inspection.

Standard:
IEC60529: 1989 +A1: 1999 +A2: 2013 “Degrees of Protection Proved By Enclosures (IP Code)”,
GB4208-2017 “Shell Protection Level (IP Code)”
GB7000.1 “Part 1 part of the lamps: General requirements and tests “The requirements of Article 9.2.9.

Application areas: underwater lamps, underwater connectors, underwater sensors, car accessories, waterproof watches, waterproof mobile phone cases and other products for sealing testing.
1. Suitable for the IPX8 waterproof grade test for the product.
2. Three test functions of one device:
(1) water pressure test;
(2) Air pressure test;
(3) Negative pressure test to meet the needs of multiple test methods for samples;

Principle of water pressure testing

(1) Principle of water pressure testing:
• Place the sample on the sample platform in the test tank in advance,
• Cover the lid, lock the screw, set the test pressure and start the device after time.
• The sample platform is immersed in the water with the sample, and the air pressure is increased on the water surface to the set value. If there is a leakage point on the sample, the water will be pressed into the sample. At the same time, the air in the sample will be discharged. Bubble observes the missing point of the sample.
• The test is completed. The sample platform rises out of the water with the sample.

(2) Principles of air pressure testing:
• Place the sample on the sample platform in the test tank in advance.
• Cover the lid, lock the screw, set the test pressure and start the device after time.
• The sample platform is parked in the water surface with the sample, and the air pressure is increased to the set value on the water surface. If there is a leakage point in the sample, the air will be pressed to the inner cavity of the sample.
• After the pressure keeps time, the sample platform is immersed in the water with the sample, and the pressure of the water surface is discharged. At this time, the air pressure in the sample will be discharged. By observing the bubbles, the leakage point of the sample is observed.
• The test is completed. The sample platform rises out of the water with the sample.

(3) Principles of negative pressure testing:
• Place the sample on the sample platform in the test tank in advance.
•. Cover the lid, lock the screw, set the test pressure and start the device after time.
• The sample platform is immersed in the water with the sample. When the water surface is vacuum to the set value, the sample will be pressed. If there is a leakage point on the sample, the air in the sample will be pulled out of the vacuum. You can observe the leakage point of the sample through bubbles.
• The test is completed. The sample platform rises out of the water with the sample.

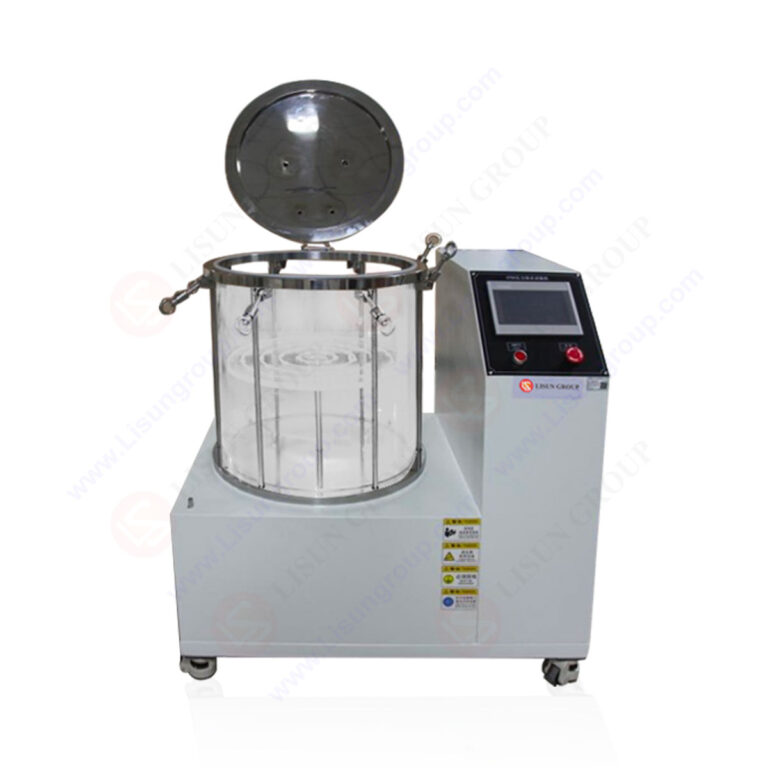

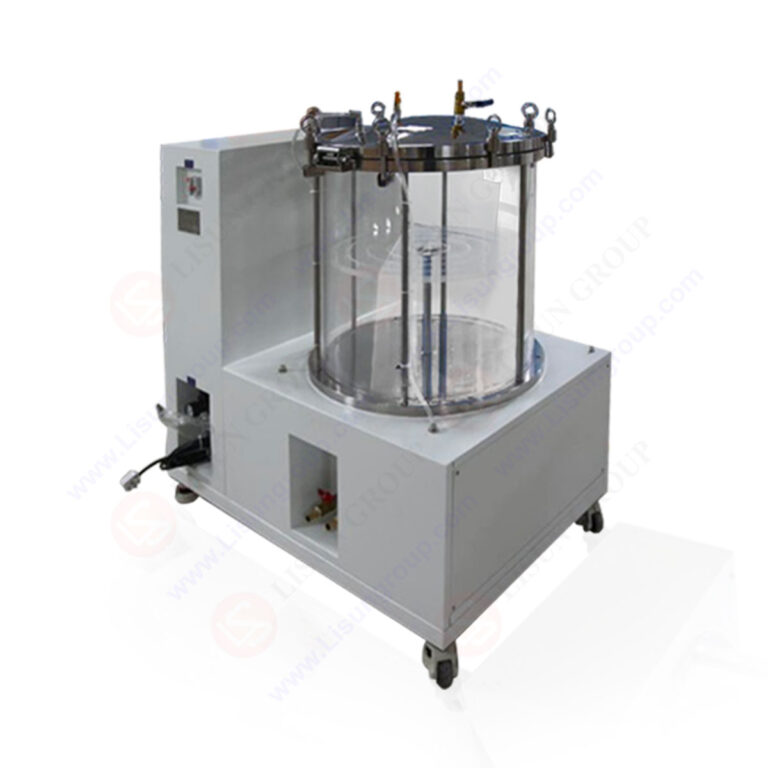

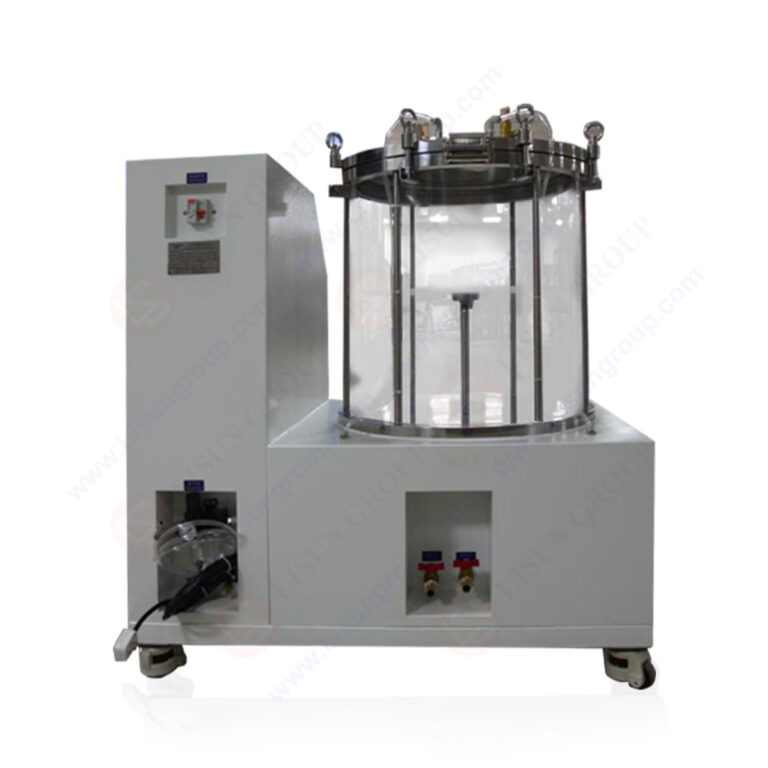

• The tank body uses acrylic material and is all transparent around (convenient to observe the test sample testing situation),
• Special silicone sealing ring, good elasticity, not easy to damage, the service life is up to 10 years.
• The pressure tank has been 2 times the pressure resistance test in the factory. It is installed with a large brand “Super” brand safety valve to ensure the safety of users.
• Control system: Use a 7 -inch color touch screen; the touch screen can be set on the touch screen: pressure -reducing time, test pressure, delay pressure leakage time and other parameters, full touch operations, easy to use.
• Electric control elements adopt imported brands (such as: LS, Omron, etc.); pneumatic elements use Taiwan’s original Adeke to ensure the stability and service life of the equipment.
• Pressure control: use 0.5 high -precision pressure sensor, water depth control accuracy ± 20cm.

Technical Specification:

Working Condition:

Transparent tank

Sample tray
