Product No: IMF61000-9

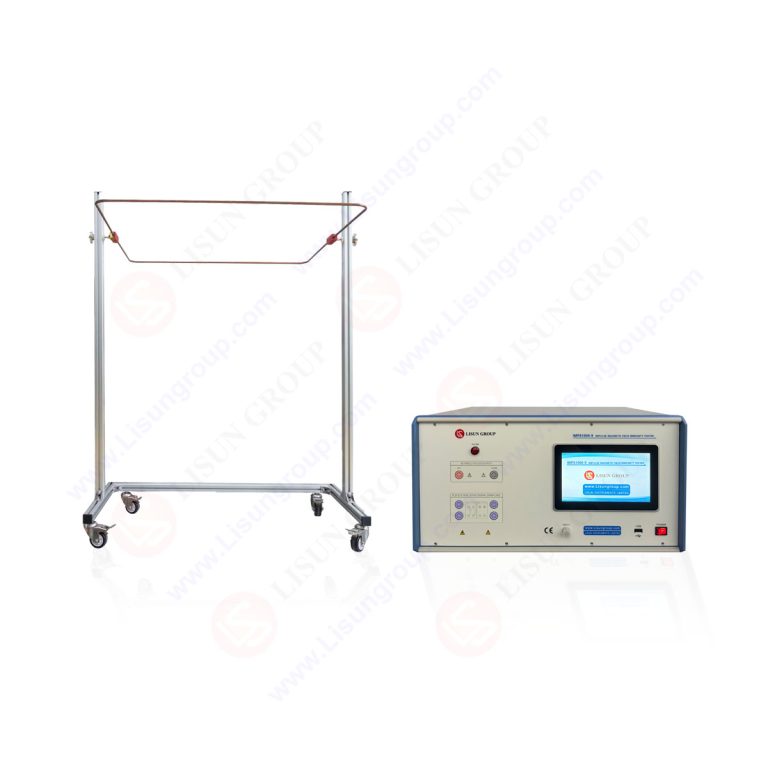

The IMF61000-9 Impulse Magnetic Field Generator uses high-voltage pulse discharge technology as its core principle. Through precise circuit control, it outputs a standard pulse waveform and converts electrical signals into a pulsed magnetic field that meets testing requirements using a magnetic field coil. This allows for accurate simulation of pulsed magnetic field interference in various electromagnetic environments, providing realistic and controllable test conditions for equipment immunity testing.
The IMF61000-9 Impulse Magnetic Field Generator is widely used in pulsed magnetic field immunity testing for products in various fields such as electrical and electronic components, communications, industrial control, power electronics, and automotive electronics. It is a professional testing instrument for third-party testing organizations, enterprise R&D and quality control departments, and university research institutes to conduct electromagnetic compatibility tests, verify product anti-interference performance, and ensure product compliance certification.
Standards:
| Standards No. | Standards Name |
| IEC61000-4-9:2016 | Electromagnetic compatibility (EMC) – Part 4-9: Testing and measurement techniques – Impulse magnetic field immunity test |
| EN61000-4-9:2016 | Electromagnetic compatibility (EMC) – Part 4-9: Testing and measurement techniques – Impulse magnetic field immunity test |
| GB/T 17626.9-2025 | 电磁兼容 试验和测量技术 第 9 部分：脉冲磁场抗扰度试验 |
Specifications:
| LISUN Model | IMF61000-9 | IMF61000-9A |
| Output Current | 100~1,200A/m±10% | 100~3,000A/m±10% |
| Short-circuit Current Waveform | 6.4μs±30%、16μs±30% | |
| Open Circuit Voltage Waveform | 1.2μs±20%、50μs±20% | |
| Output Impedance | 2 Ω±0.25 Ω | |
| Output Polarity | Positive electrode, negative electrode and fully automatic | |
| Phase Angle | 0~360° | |
| Number of discharges | 1~9,999 times | |
| Discharge Interval | 5~9,999s | |
| Magnetic Field Coil | 1*1m single-turn coil | |
| Control System | 10-inch extra-large Chinese and English Android touchscreen | |
