Dust Testing and Ratings Analysis: Ensuring Electronic Devices’ Reliability in Harsh Environments

In our daily lives, electronic and electrical products generally come with certain levels of dust and water resistance. These protective capabilities are crucial for safeguarding products from harsh environmental impacts, extending equipment lifespan, and ensuring their proper functioning. Dust testing is commonly used to assess the protective capabilities of electronic products in dusty environments. An increased IP (Ingress Protection) rating signifies a device’s enhanced ability to withstand external environmental damage. Here’s a detailed analysis of dust protection testing and related standards.

Overview of IP Protection Ratings:
IP protection ratings are defined by the International Electrotechnical Commission (IEC) standard IEC 60529, which describes the enclosure’s protection against foreign objects (such as dust) and water. The IP rating format is IPXX, where XX represents two numerical digits indicating the protection levels against solids and liquids, respectively.

The first digit, X, denotes the dust protection level, ranging from 0 to 6. Common dust protection levels include IP5X and IP6X, defined as follows:

• IP00: No dust protection.
• IP1X: Protection against solid objects larger than 50mm.
• IP2X: Protection against solid objects larger than 12.5mm.
• IP3X: Protection against solid objects larger than 2.5mm.
• IP4X: Protection against solid objects larger than 1.0mm.
• IP5X: Dust ingress is not completely prevented but does not interfere with the device’s normal operation.
• IP6X: Complete dust protection.

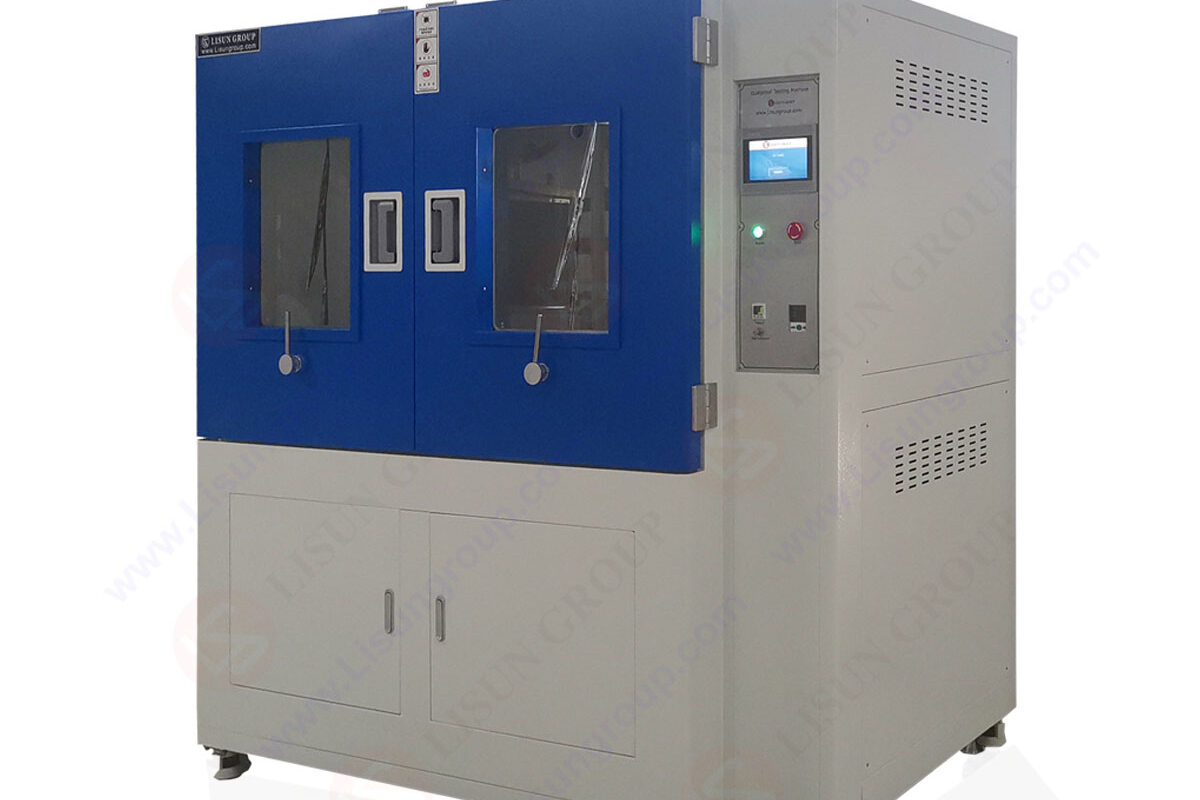

SC-015 Dustproof test chamber

Dust Testing Procedure

Sample Pre-treatment

• Process samples according to testing requirements to keep them dry.
• Dust testing is typically performed following water resistance testing; ensure samples are completely dry before placing them in the dust test chamber.
• If no specific pre-treatment conditions are stated, samples should be placed in normal atmospheric conditions (+15°C to +35°C), relative humidity (45%RH to 75%RH), and atmospheric pressure (80kPa to 106kPa) for at least 2 hours.

Sample Placement

• Place pre-treated samples into the dust test chamber. Samples generally should not be powered on during testing.
• The volume of samples should not exceed one-third of the effective working space of the dust chamber, and the distance between samples and chamber walls should be at least 100mm.

Vacuum Extraction

• IP5X (Type 1): For samples with internal pressure lower than the surrounding atmospheric pressure, set up an air extraction port near vulnerable components and connect it to the vacuum system.
• IP5X (Type 2): For samples with internal pressure equal to the atmospheric pressure, vacuum extraction is not required.
• IPX6: Vacuum extraction is required for both Type 1 and Type 2 enclosures.

Amount of Dust

Add 2kg of dry talcum powder per cubic meter of the dust chamber’s volume.

Seal the Dust Test Chamber

Ensure the dust chamber’s seal is intact to prevent dust from escaping.

Commence Testing

• For samples requiring vacuum extraction, start both the blower and vacuum system, adjusting valves to meet the product’s technical requirements.
• For samples not requiring vacuum extraction, operate only the blower.

End of Test

• For samples with interim inspection requirements, stop the equipment once the test duration is reached, allow dust to settle completely, then perform the inspection.
• For samples without interim inspection requirements, stop the equipment after testing, let dust settle, then remove the sample and place it in pre-treatment conditions for 1-2 hours.

Final Inspection

• Check the amount and deposition of dust inside the sample enclosure.
• Verify the sample’s electrical and mechanical performance based on technical requirements.

Relevant Standards

• GB/T 4208-2017: Specifies the protection levels for enclosures, including protection against solid objects (like dust).
• IEC 60529: An international standard for assessing the protection level of electrical equipment enclosures.
• GB/T 2423.37: Chinese national standard for dust testing of electrical and electronic products.
• IEC 60068-2-68: An international standard’s Test L for evaluating products in dust and sand environments.
• GJB150.12A: Chinese military equipment standard including dust testing requirements.

Dust testing ensures that products maintain their reliability and durability in various dusty environments, providing essential performance assurance for their use, storage, and transportation. Choosing the appropriate standards for testing based on specific application needs and environmental conditions is crucial.
